India is a multi-language, multi-script country with 22 official languages and 11 written script forms. About a billion people in India use these languages as their first language. English, the most common technical language, is the lingua franca of commerce, government, and the court system, but is not widely understood beyond the middle class and those who can afford formal, foreign-language education. Not only is there a large societal gap between the rich and poor, but that gap appears to be widening due the dominance of English in the society. About 5% of the population (usually the educated class) can understand English as their second language. Hindi is spoken by about 30% [5] of the population, but it is concentrated in urban areas and north-central India, and is still not only foreign but often unpopular in many other regions. Computability of Indian languages could help bridge the societal gaps in education, economy and healthcare. However the research and development, availability of standards, support from operating systems and applications in these directions moved very slow due to language heterogeneity.
Today this phenomenon can also be observed on the world wide web. The percentage of Indian language content is very less compared to the official languages of United Nations [7]. Even within the available content, majority is not searchable and hence not reachable due to multiple encodings used while authoring such websites. Web publishers of such content were hesitant to use any available standards such as Unicode due to very delayed support from operating systems and browsers in rendering Indic scripts. Even today Hindi is rendered properly only on Windows XP and beyond. Linux has very little support for these languages. Indian languages had barely any support till Windows 2000 operating system. This creates a major bottleneck for web publishers in these languages to get viewership.
Despite all these issues, we found considerable amount of content being published on the web. However such content gets unnoticed or gets very less viewership since most of such content is not accessible through search engines due to non-standard encodings being rendered using proprietary fonts.
This paper is organized into seven sections. In the next sub-section we give an introduction to characters, glyphs and fonts in order to appreciate the complexity involved in rendering complex scripts. We then introduce to the complexity of Indic scripts in the sub-section 1.2. In Section 2 we make the problem statement and explain an implementation to solve this problem in Section 3. We report some experiments and results in Section 4, followed by a conclusion in Section 5.
In the history of mankind the act of writing has always been considered as an activity producing visual results, namely text. The computer has brought a more abstract layer to it, by storing and transmitting textual data. The atomic unit of this abstract representation of text, as defined in the Unicode standard [8], is called a character. And indeed, characters prove to be useful for obtaining alternative (non-visual) representations of text such as Braille, speech synthesis, etc. The visual representation of a character is called a glyph [8]. Displaying textual contents, whether on screen or on paper, involves translating characters into glyphs, a non-trivial operation for many writing systems. Going in the opposite direction (from glyphs to characters) is known as OCR when done by a machine, or as reading when done by a human [8]. The technology trend over the last few years has been to use characters for most of the text processing and to limit glyph issues to the last stage, namely rendering. At that level, character to glyph translation is handled by increasingly ``intelligent'' (cf. OpenType and AAT technologies) fonts and font encodings. Unicode is an effort in this direction. At the same time, restoring the original character stream from a rendered electronic document output for operations such as searching, indexing, or copy-pasting, no general solution exists in today's popular document formats yet. Despite the problems involved, web authors tend to use proprietary encodings due to the complex characteristics of Indic scripts as described in the following section.
Indic scripts are phonetic in nature. There are vowels and consonant symbols. The consonants become a syllable after the addition of a vowel sound to it. Further to compound the problem there are `compound syllables' also referred as ligatures. For instance, if we consider `tri' in `triangle', there are three letters corresponding to three sounds `ta', `ra', `yi'. But in the case of Indic Scripts the three are built together to make a single compound consonant having a non-linear structure unlike Latin based languages.
The main problem with display of Indic scripts is dealing with their non-linear structures. Glyphs have variable widths and have positional attributes. Vowel signs can be attached to the top, bottom, left and right sides of the base consonant. Vowel signs may also combine with consonants to form independent glyphs. Consonants frequently combine with each other to form complex conjunct glyphs. Although the encoding encapsulates only the basic alphabetic characters, the number of glyphs and their combinations required for the exhaustive rendering of these scripts can be quite large [11].
Since the character to glyph mappings have to be achieved using a 256 character address space, web authors come up with an intelligent way of representing all the characters in the language using some 256 glyphs. Most of these glyphs do not have any semantic significance in the language by themselves. However when displayed together using some positional parameters, they achieve human readable characters. This situation makes the Indian language web content inaccessible for machine processing.
Many information seekers use a search engine to begin their Web activity. In this case, users submit a query, typically a list of keywords, and receive a list of Web pages that may be relevant, typically pages that contain the keywords.
Today though considerable amount of content is available in Indian languages, users are unable to search such content. Because Indian language websites rely on unique encodings or proprietary extensions of existing standard encodings [11]. This plurality of encodings creates a problem for information retrieval to function as desired. Also many research groups in information retrieval and natural language processing feel the need to collect corpora in these languages from the web in the same way they obtain corpora for other languages [14], [7], [1], [10]. Therefore in order to search or process Indian language websites, we should be able to transliterate all the encodings into one standard encoding and accept the user's queries in the same encoding and build the search index.
This task involves many steps. First step is to be able to identify the various encodings in Indian languages on the web. Since these encodings are non-standard, there is no one comprehensive list of such possible encodings. Therefore we need to somehow identify all such encodings and also be able to classify these encodings into the existing types. Second step is to build a transliteration mapping for the given encoding into a standard encoding which is UTF-8 and hence convert any page into a standard and index it. Third step is to be able to accept user's queries in the same standard as that of the transliterated documents which is UTF-8.

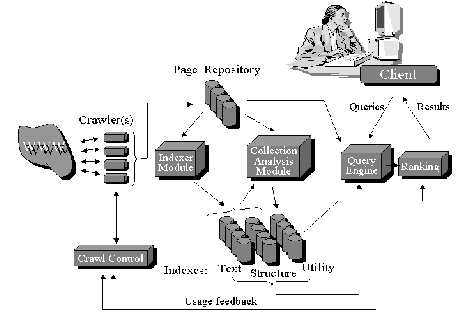

In this paper we report a search engine called WebKhoj which can search web pages in the top 10 Indian languages according to the number of native speakers. WebKhoj currently supports Hindi, Telugu, Tamil, Malayalam, Marathi, Kannada, Bengali, Punjabi, Gujarati and Oriya. Before we describe the architecture of WebKhoj, it is useful to understand how a Web search engine is typically put together and then see its extensions for our task.
We use a simple heuristic to identify the potential character boundaries from byte sequences. First the text from the collected web pages is divided into words using a suitable word tokenizer. Then the algorithm lists all the possible word beginning bytes in both the source and target font encodings. Now each word is scanned from left to right until one such byte occurs in the word. Whenever a valid word beginner occurs in the word, we tokenize at that point, and the byte sequence till that point is treated as a potential character. For example in a given encoding if all the possible word beginning bytes are `a', `b' and `c', a new word `cars' is tokenized as `c', `ars', since neither `r' nor `s' are valid word beginners. The byte sequences thus obtained by segmentation are potential characters or ligatures in that language.
Once such segmentation is done, the frequency of such byte sequences (or potential characters) is calculated. It was found from our experiments that the ranks based on the normalized frequency of such potential characters is highly correlated (we present more details in our experiments section). Therefore we use this algorithm to come up initial suggested mappings for transcoding, and then the user would manually correct any errors by going through the font mappings as shown in the Figure . The transcoding tool sorts the potential characters according to their ranks, so that the user would find the equivalent match in the target encoding among the top few possibilities. Also since the mappings are ordered based on the normalized frequency found in the corpus, mapping source and target bytes in this order ensures optimal precision that can be obtained from a set of mappings.
Once such transcoder mappings are generated for all possible encodings in Indian languages, a transcoding module is called during indexing of the web documents. If a web document is encoded in an encoding other than UTF-8, the transcoder module is called to transliterate the encoding of the given web page into UTF-8 standard. In order to do this, the HTML page is parsed to obtain its document object model (DOM) using the JTidy utility1. All the nodes of type ``font'' are extracted from the DOM and the font encoding is checked against a known set of encodings on the web. Based on the font encoding, the appropriate transcoder mappings are used to transliterate the relevant text into UTF-8. One word is transcoded at a time. In order to transcode, the maximum byte sequence available in the mapping table is used to transliterate the encodings and the process is repeated to the remaining substring of the word. This transliterated document is then sent to the indexer to build the inverted index.
This does not affect ranking, but rather just attempts to make scores from different queries comparable.

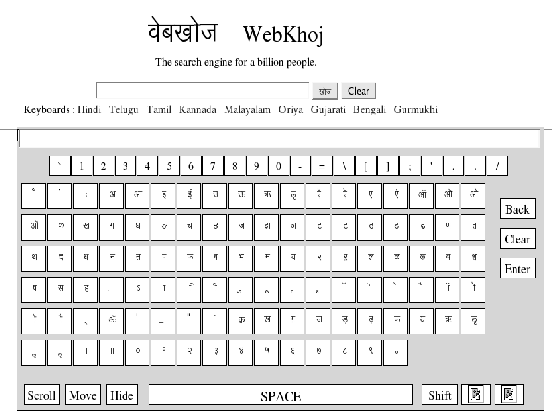

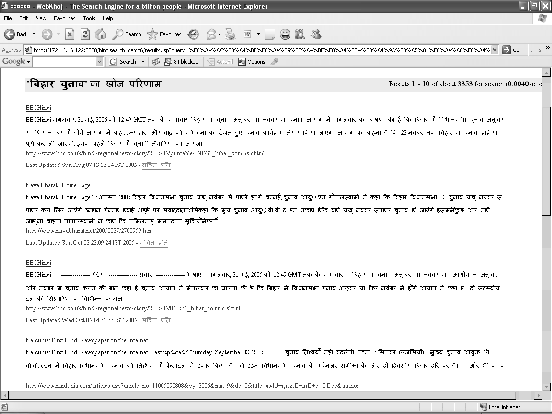

Currently soft keyboards for 10 Indian languages are provided in the searching interface. One language is shown to the user at any given instance. The user can change the keyboard to a different language by clicking on the desired language hyperlink displayed on the interface as shown in Figure . After thus framing the query, the user can search for the web documents, and the results are ranked and displayed much like Google as shown in Figure .
The major reasons for this phenomenon can be attributed to unavailability of proper website authoring tools equipped with spell checkers for Indian languages and multiple dialects of spoken language, transliteration of proper names and words borrowed from foreign languages whose spellings are not standardized. While we have to handle Indian language words with spelling variations and errors, we also showed that a considerable percentage of foreign language words mainly English have entered into Indian language usage which cannot be ignored. While such words are being frequently used by people, there is no standardization in spelling for such words thereby resulting in huge variations due to transliteration. Given such variations in spelling it becomes difficult for web Information Retrieval applications built for Indian languages, since finding relevant documents would require more than performing an exact string match. It was shown that normalization rules for specific languages work best with spelling normalization problems. We make use of a set of rules [12] to normalize the words before indexing them or looking them up from the index. These rules are language specific and we describe the rules for Hindi in the next sub-sections. We achieve normalization of word spellings by mapping the alphabet of the given language into another alphabet where . We use the following rules to achieve such a normalized mapping.
These rules were compared with many approximate string matching algorithms are were found to result in a better f-measure [12].
We report here some experiments that were conducted in transcoding the proprietary encodings and present some statistics from our language focused crawl about the Indian language web.

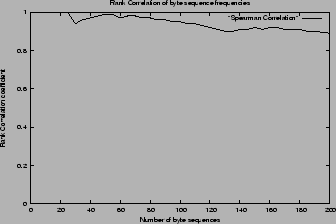

The transcoding tool was designed to generate mappings between two encodings in a semi-automatic fashion. In order to achieve this the tool automatically gives some mapping suggestions based on the rank correlation of the two encodings in question. We found that the byte sequences from two encodings of same language correlate very well, by looking at the Spearman's rank correlation coefficient. Intuitively this phenomenon can be understood as the convergence of unique lexicon from two encodings from sufficiently large corpus, since they both belong to the same language. To find the amount of correlation, we experimented with two different encodings from Hindi. We ran the character segmentation algorithm and computed the normalized frequencies as mentioned above and ranked the character sequences in both the encodings from a corpus of 2,000 documents from each of these encodings. We manually marked the corresponding frequency based rank positions of a given character or a ligature from these encodings and calculated the Spearman's rank correlation coefficient. We then plotted a graph with the Spearman's correlation coefficient on y-axis and the number of mappings on x-axis as shown in Figure . We observed that the rank correlation is 100% for the first 25 mappings that were automatically generated, and are close to 90% for the first 200 mappings which can achieve a transcoding precision of above 90%.
Since these byte sequences are an ordered set, ordered by their normalized frequency, the precision of transliteration obtained by providing mappings between encodings in the order provided in the ordered set is optimal. We have observed that with about 2,000 encoding mappings for each encoding on average once can achieve around 99% precision. However this number also depends on the language complexity. For instance, the number of encodings required in Telugu transliteration is more than the number of encodings required in Hindi to obtain the same amount of precision.

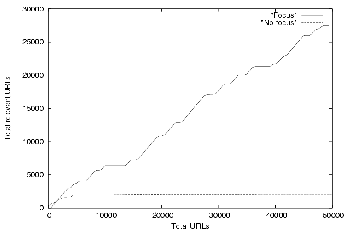

We now report some of our experiments on the Indian language focused crawling. We ran a daily crawl for 6 months period. Our crawler was focused to fetch content in the top 10 spoken languages in India, namely Hindi, Telugu, Tamil, Bengali, Marathi, Gujarati, Kannada, Malayalam, Oriya and Punjabi. In another experiment, in order to find the effectiveness of language focused crawling, we executed the crawler in two modes with a set of 100 seed URLs which constitute popular Indian based web portals, news sites and home pages of people of Indian origin. In the first mode it was executed without language focus restriction using a pure FIFO crawl queue while the second mode was with language focus restriction using a priority queue from which the crawler fetched the next crawl URL. We plotted the number of relevant pages fetched in the first 50,000 URLs in both the runs as shown in the Figure . The relevance of the fetched pages was calculated by checking the encoding on that page. It can be clearly seen that language focus restriction on the crawler helps in downloading more relevant pages.

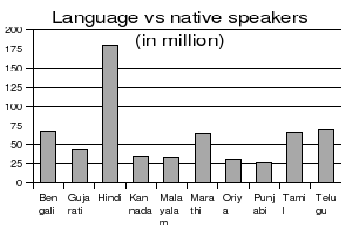

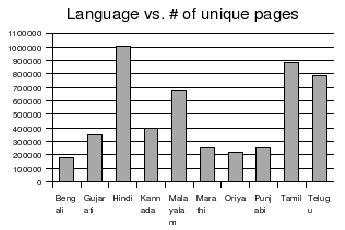

From the 6 month crawl, about half a million unique documents were collected from all the languages. Unique web pages were picked after eliminating approximate duplicate pages using shingling technique [4]. These half a million pages were distributed across the 10 languages as shown in the Figure . Figure shows the population of people speaking the various Indian languages [3]. It can be observed that even within India there is a divide in the web publishing activity in various languages. For instance it can be observed that the content is actively getting published in south Indian languages like Telugu, Tamil and Malayalam when compared to the northern languages such as Marathi, Gujarati, Oriya, Bengali and Punjabi. Hindi has the majority of content published on the web but Hindi is also the language spoken by majority of Indian population.

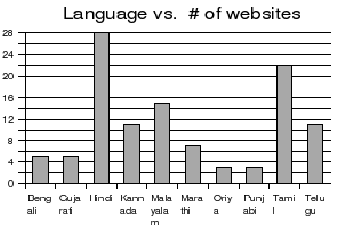

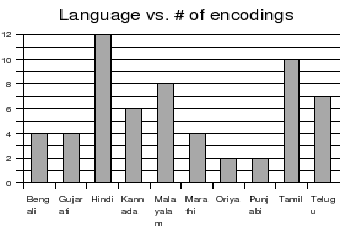

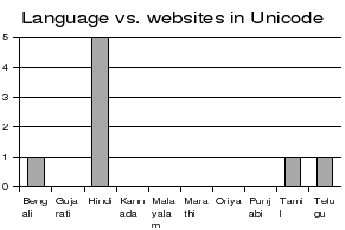

It can be seen from Figure that a very few websites publish content using a global standard such as Unicode. This explains the reason for most of the Indian language not being indexed or searchable by the present day popular web search engines. On the other hand it can be seen from Figure and Figure that the number of unique encodings found on the web for these languages is almost equivalent to the number of websites. This observation suggests that every web publisher is coming up with their own proprietary encodings to publish web content. We did not consider the websites that publish using images in this study, but our preliminary study suggests that there are a large number of websites that publish content as images as well.
