WebGUIDE: Querying and Navigating Changes in Web Repositories

Fred Douglis
Yih-Farn Chen	Thomas Ball
Eleftherios Koutsofios

Motivation

• The web as a publishing medium
  • Lots of data out there, changing at different rates
  • Examples: WWW5 home page, tech support, org charts
• Useful to track changes to web pages
  • Learn about changed content
  • Find new links of interest
• Numerous tools for tracking when individual pages change
• We focus on how they change, and on clusters of pages

WebGUIDE

• Web Graphical User Interface to a Difference Engine
• Combines Ciao (graphical interface) and AIDE (difference engine)
  • Ciao shows high-level structural changes on collections of pages
  • AIDE shows low-level differences
  • Can see changes graphically or textually
• Web Time Travel
  • View a snapshot of web-of-the-past
  • Compare web as of two points in time (recursive diff)

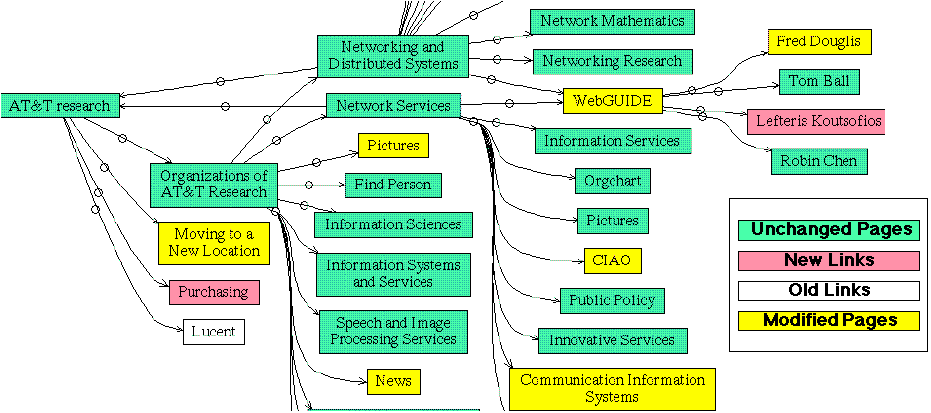

WebGUIDE Example

HtmlDiff Example

HtmlDiff: Here is the first difference. There are 9 differences on this page.is old. is new.

...

AIDE : AIDE : AT&T Internet Difference Engine
Description : AIDE is a tool that ``remembers'' HTTP pages for users and then uses Tom Ball 's HtmlDiff program to highlight changes to subsequent versions of the page. It is related to WebGUIDE , which provides a graphical interface.
For more information, contact Fred Douglis

Recursive HtmlDiff Example

HtmlDiff: Here is the first difference. There are 9 differences on this page.is old. is new. /% for recursive diff.

...

AIDE : % AIDE : AT&T Internet Difference Engine
Description : AIDE is a tool that ``remembers'' HTTP pages for users and then uses Tom Ball 's HtmlDiff program to highlight changes to subsequent versions of the page. It is related to % WebGUIDE , which provides a graphical interface.
For more information, contact % Fred Douglis

Ciao

• Graphical navigation of document repositories
• Three components
  • Abstractor converts source documents to database representation
  • Repository contains entity-relationship (E-R) database and documents
  • Graphical interface to query and visualize structure
• Used for C/C++, shell scripts, HTML

AT&T Internet Difference Engine (AIDE)

• CGI interface
• Notification of updated pages, organized by priority
• Shared version archive
• Differencing (HtmlDiff)

Integrating AIDE and Ciao

• Ciao uses AIDE repository to get old versions to compare structures
• AIDE & Ciao share logic to get current versions from web
• Ciao uses AIDE "What's New?" functionality to annotate nodes with changed data
• Click on graph node (image map) goes to WebGUIDE form
  • Ciao graphical operations
  • AIDE operations (archive, diff, ...)

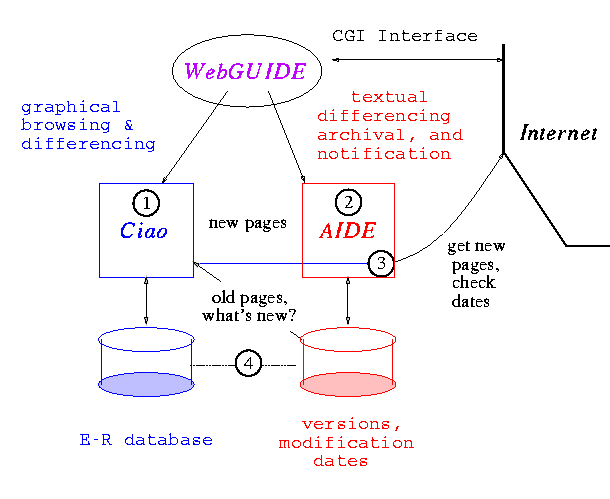

Architecture

• System components
  1. Graph Generator (Ciao)
  2. Difference Engine (HtmlDiff)
  3. Robot to track modifications
  4. Version and meta-data repository

Recursion

• Collections of documents often interesting
  • Virtual library page and its descendants
  • Related pages in a directory
• Operations to perform
  • Find when any page in collection is updated
  • Archive changes to related pages as a group
  • Run HtmlDiff on pages referenced by page being compared
• What versions to compare?
  • Base on timestamps
  • Use newest archived version no newer than root page
  • AIDE uses to show available diffs and % for unavailable ones

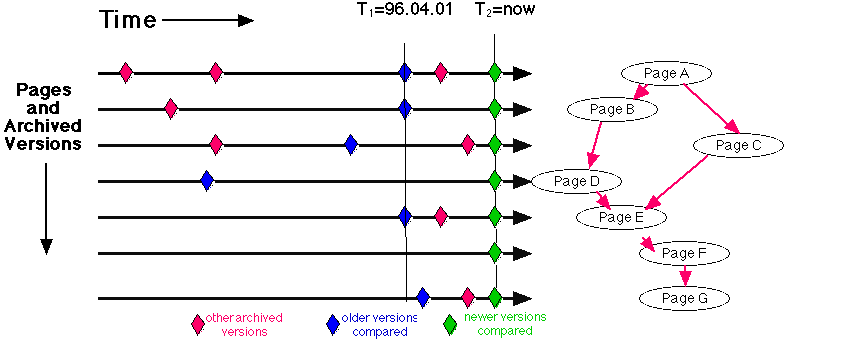

Picking Versions

Performance Issues

• Graph generation
  • Data extraction on the fly
  • Graph layout
• Recursive diff
  • Database access slows down HtmlDiff

Future Work

• Direct access to Ciao
  • Ciao outside of a web browser much more effective
    • Fast panning and zooming
    • Simple GUI for graph operations
  • Ciao plug-in for Netscape
• Performance enhancements
  • Caching and optimistic generation of HtmlDiff output
  • Caching of Ciao metadata
• AIDE-specific issues
  • Security and privacy concerns
  • Copyright

Related Work

• Tracking modifications
  • Smart Bookmarks: integrated with bookmark file
  • URL-minder: Internet-wide service via email
• Difference detection
  • Do-I-Care: finding interesting changes (Starr, et al.)
  • Hierarchical differences (Chawathe, et al.)
• Browsing
  • WebMap: visualize relationships between pages seen in browser
  • Hyper-G: hierarchical navigation and searches

Conclusions

• WebGUIDE combines Ciao with our Difference Engine
  • Tracking and viewing of changes to web pages
  • Graphical interface for comparing document structures
• Recursive tracking and differencing at both textual and graphical levels
• User-interface and performance considerations suggest some extensions and modifications to this model
• Building a user community
