View Meta Script

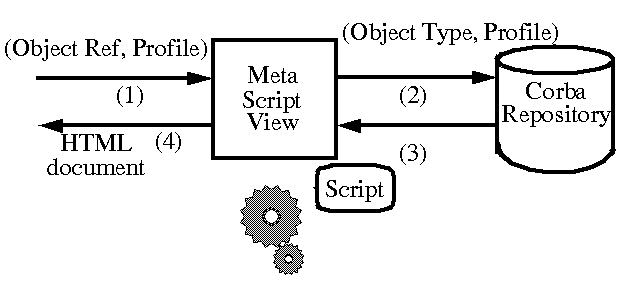

• The meta script View represents the object state according to a user's profile


• Takes two parameters: an object reference and a user's profile (1)
  • It retrieves from the CorbaWeb Repository the appropriate view script according to the object type and the profile (2)
  • It executes the retrieved script (3)

• As a result (4), the retrieved view script:
  • calls IDL features to read the object state
  • generates an HTML document presenting the object state
