Random Sampling from a Search Engine's Index

Ziv Bar-Yossef*

Department of Electrical Engineering, Technion
Haifa 32000, Israel

Maxim Gurevich

Department of Electrical Engineering, Technion
Haifa 32000, Israel

Copyright is held by the World Wide Web Conference Committee (IW3C2). Distribution of these papers is limited to classroom use, and personal use by others.
WWW 2006, May 23.26, 2006, Edinburgh, Scotland.
ACM 1-59593-323-9/06/0005.

* Supported by the European Commission Marie Curie International Re-integration Grant.

ABSTRACT

We revisit a problem introduced by Bharat and Broder almost a decade ago: how to sample random pages from a search engine's index using only the search engine's public interface? Such a primitive is particularly useful in creating objective benchmarks for search engines.

The technique of Bharat and Broder suffers from two well recorded biases: it favors long documents and highly ranked documents. In this paper we introduce two novel sampling techniques: a lexicon-based technique and a random walk technique. Our methods produce biased sample documents, but each sample is accompanied by a corresponding ``weight'', which represents the probability of this document to be selected in the sample. The samples, in conjunction with the weights, are then used to simulate near-uniform samples. To this end, we resort to three well known Monte Carlo simulation methods: rejection sampling, importance sampling and the Metropolis-Hastings algorithm.

We analyze our methods rigorously and prove that under plausible assumptions, our techniques are guaranteed to produce near-uniform samples from the search engine's index. Experiments on a corpus of 2.4 million documents substantiate our analytical findings and show that our algorithms do not have significant bias towards long or highly ranked documents. We use our algorithms to collect fresh data about the relative sizes of Google, MSN Search, and Yahoo!.


Categories & Subject Descriptors

H.3.3: Information Search and Retrieval.

General Terms

Measurement, Algorithms.

Keywords

search engines, benchmarks, sampling, size estimation.


1 Introduction

The latest round in the search engine size wars (cf. [22]) erupted last August after Yahoo! claimed [20] to index more than 20 billion documents. At the same time Google reported only 8 billion pages in its index, but simultaneously announced [3] that its index is three times larger than its competition's. This surreal debate underscores the lack of widely acceptable benchmarks for search engines.

Current evaluation methods for search engines [11,14,6] are labor-intensive and are based on anecdotal sets of queries or on fixed TREC data sets. Such methods do not provide statistical guarantees about their results. Furthermore, when the query test set is known in advance, search engines can manually adapt their results to guarantee success in the benchmark.

In an attempt to come up with reliable automatic benchmarks for search engines, Bharat and Broder [4] proposed the following problem: can we sample random documents from a search engine's index using only the engine's public interface? Unlike the manual methods, random sampling offers statistical guarantees about its test results. It is important that the sampling is done only via the public interface, and not by asking the search engine itself to collect the sample documents, because we would like the tests to be objective and not to rely on the goodwill of search engines. Furthermore, search engines seem reluctant to allow random sampling from their index, because they do not want third parties to dig into their data.

Random sampling can be used to test the quality of search engines under a multitude of criteria: (1) Overlap and relative sizes: we can find out, e.g., what fraction of the documents indexed by Yahoo! are also indexed by Google and vice versa. Such size comparisons can indicate which search engines have better recall for narrow-topic queries. (2) Topical bias: we can identify themes or topics that are overrepresented or underrepresented in the index. (3) Freshness evaluation: we can evaluate the freshness of the index, by estimating the fraction of ``dead links'' it contains. (4) Spam evaluation: using a spam classifier, we can find the fraction of spam pages in the index. (5) Security evaluation: using an anti-virus software, we can estimate the fraction of indexed documents that are contaminated by viruses.


The Bharat-Broder approach. Bharat and Broder proposed the following simple algorithm for uniformly sampling documents from a search engine's index. The algorithm successively formulates ``random'' queries, submits the queries to the search engine, and picks uniformly chosen documents from the result sets returned. In order to construct the random queries, uses a lexicon of terms that appear in web documents. Each term in the lexicon should be accompanied by an estimate of its frequency on the web. Random queries are then formulated as conjunctions or disjunctions of terms that are randomly selected from the lexicon, based on their estimated frequency. The lexicon is constructed at a pre-processing step by crawling a large corpus of documents (Bharat and Broder crawled the Yahoo! directory).

As Bharat and Broder noted in the original article [4] and was later observed by subsequent studies [7], the method suffers from severe biases. The first bias is towards long, ``content-rich'', documents, simply because these documents match many more queries than short documents. An extreme example is online dictionaries and word lists (such as the ispell dictionaries), which will be returned as the result of almost any query. Worse than that, when queries are formulated as conjunctions or disjunctions of unrelated terms, typically only dictionaries and word lists match the queries. Another major problem is that search engines do not allow access to the full list of results, but rather only to the top $ k$ ones (where $ k$ is usually 1,000). Since the Bharat-Broder technique samples documents only from the top $ k$ , it is biased towards documents that have high static rank. Finally, the accuracy of the Bharat-Broder method is directly related to the quality of the term frequency estimates it uses. In particular, if these estimates are biased, then the same bias will be reflected in the samples. Collecting accurate term statistics is a major problem by itself, and it is not clear that using a web directory like Yahoo! is sufficient.


Our contributions. We propose two novel methods for sampling pages from a search engine's index. Our first technique uses a lexicon to formulate random queries, but unlike the Bharat-Broder approach, does not need to know term frequencies. Our second technique is based on a random walk on a virtual graph defined over the documents in the index. This technique does not need a lexicon at all.

Both our techniques, like the Bharat-Broder method, produce biased samples. That is, some documents are more likely to be sampled than others. Yet, our algorithms have one crucial advantage: they produce together with each sample document $ \mathbf{x}$ a corresponding ``weight'' $ w(\mathbf{x})$ , which represents the probability $ p(\mathbf{x})$ of the document to be sampled. This seemingly minor difference turns out to be extremely significant. The weights allow us to apply stochastic simulation methods on the samples and consequently obtain uniform, unbiased, samples from the search engine's index!

A simulation method accepts samples taken from a trial distribution $ p$ and simulates sampling from a target distribution $ \pi$ . In order for the simulation to be feasible, the simulator needs to be able to compute $ p(\mathbf{x})$ and $ \pi(\mathbf{x})$ , at least up to normalization, given any instance $ \mathbf{x}$ . The simulation has some overhead, which depends on how far $ p$ and $ \pi$ are from each other. In our case $ \pi$ is the uniform distribution over the search engine's index, and $ p$ is the distribution of samples generated by our samplers. We employ three Monte Carlo simulation methods: rejection sampling, importance sampling, and the Metropolis-Hastings algorithm.

One technical difficulty in applying simulation methods in our setting is that the weights produced by our samplers are only approximate. To the best of our knowledge, stochastic simulation with approximate weights has not been addressed before. We are able to show that the rejection sampling method still works even when provided with approximate weights. The distribution of the samples it generates is no longer identical to the target distribution $ \pi$ , but is rather only close to $ \pi$ . Similar analysis for importance sampling and for the Metropolis-Hastings algorithm is deferred to future work, but our empirical results suggest that they too are affected only marginally by the approximate weights.

Pool-based sampler. A query pool is a collection of queries. Our pool-based sampler assumes knowledge of some query pool $ {\cal{P}}$ . The terms constituting queries in the pool can be collected by crawling a large corpus, like the Yahoo! or ODP [9] directories. We stress again that knowledge of the frequencies of these terms is not needed.

The volume of a query $ \mathbf{q}$ is the number of documents indexed by the search engine and that match $ \mathbf{q}$ . We first show that if the sampler could somehow sample queries from the pool proportionally to their volume, then we could attach to each sample a weight. Then, by applying any of the simulation methods (say, rejection sampling), we would obtain truly uniform samples from the search engine's index. Sampling queries according to their volume is tricky, though, because we do not know a priori the volume of queries. What we do instead is sample queries from the pool according to some other, arbitrary, distribution (e.g., the uniform one) and then simulate sampling from the volume distribution. To this end, we use stochastic simulation again. Hence, stochastic simulation is used twice: first to generate the random queries and then to generate the uniform documents.

We rigorously analyze the pool-based sampler and identify the properties of the query pool that make this technique accurate and efficient. We find that using a pool of phrase queries is much more preferable to using conjunctive or disjunctive queries, like the ones used by Bharat and Broder.


Random walk sampler. We propose a completely different sampler, which does not use a term lexicon at all. This sampler performs a random walk on a virtual graph defined over the documents in the index. The limit equilibrium distribution of this random walk is the uniform distribution over the documents, and thus if we run the random walk for sufficiently many steps, we are guaranteed to obtain near-uniform samples from the index.

The graph is defined as follows: two documents are connected by an edge iff they share a term or a phrase. This means that both documents are guaranteed to belong to the result set of a query consisting of the shared term/phrase. Running a random walk on this graph is simple: we start from an arbitrary document, at each step choose a random term/phrase from the current document, submit a corresponding query to the search engine, and move to a randomly chosen document from the query's result set.

The random walk as defined does not converge to the uniform distribution. In order to make it uniform, we apply the Metropolis-Hastings algorithm. We analyze the random walk experimentally, and show that a relatively small number of steps is needed to approach the limit distribution.


Experimental results. To validate our techniques, we crawled 2.4 million English pages from the ODP hierarchy [9], and built a search engine over these pages. We used a subset of these pages to create the query pool needed for our pool-based sampler and for the Bharat-Broder sampler.

We ran our two samplers as well as the Bharat-Broder sampler on this search engine, and calculated bias towards long documents and towards highly ranked documents. As expected, the Bharat-Broder sampler was found to have significant bias. On the other hand, our pool-based sampler had no bias at all, while the random walk sampler only had a small negative bias towards short documents.

We then used our pool-based sampler to collect samples from Google, MSN Search, and Yahoo!. As a query pool, we used 5-term phrases extracted from English pages at the ODP hierarchy. We used the samples from the search engines to produce up-to-date estimates of their relative sizes.

For lack of space, all proofs are omitted. They can be found in the full version of the paper.


2 Related work

Apart from Bharat and Broder, several other studies used queries to search engines to collect random samples from their indices. Queries were either manually crafted [5], collected from user query logs [17], or selected randomly using the technique of Bharat and Broder [12,7]. Assuming search engine indices are independent and uniformly chosen subsets of the web, estimates of the sizes of search engines and the indexable web have been derived. Due to the bias in the samples, though, these estimates lack any statistical guarantees. Dobra and Fienberg [10] showed how to avoid the unrealistic independence and uniformity assumptions, but did not address the sampling bias. We believe that their methods could be combined with ours to obtain accurate size estimates.

Several studies [18,15,16,2,23] developed methods for sampling pages from the indexable web. Such methods can be used to also sample pages from a search engine's index. Yet, since these methods try to solve a harder problem, they also suffer from various biases, which our method does not have. It is interesting to note that the random walk approaches of Henzinger et al. [16] and Bar-Yossef et al. [2] implicitly use importance sampling and rejection sampling to make their samples near-uniform. Yet, the bias they suffer towards pages with high in-degree is significant.

Last year, Anagnostopoulos, Broder, and Carmel [1] proposed an enhancement to index architecture that could support random sampling from the result sets of broad queries. This is very different from what we do in this paper: our techniques do not propose any changes to current search engine architecture and do not rely on internal data of the search engine; moreover, our goal is to sample from the whole index and not from the result set of a particular query.


3 Formal setup


Notation. All probability spaces in this paper are discrete and finite. Given a distribution $ p$ on a domain $ {\cal{U}}$ , the support of $ p$ is defined as: $ \textsc{supp}(p) = \{ \mathbf{x}\in {\cal{U}}: p(\mathbf{x}) > 0 \}$ . For an event $ {\cal{U}}' \subseteq {\cal{U}}$ , we define $ p({\cal{U}}')$ to be the probability of this event under $ p$ : $ p({\cal{U}}') = \sum_{\mathbf{x}\in {\cal{U}}'}p(\mathbf{x})$ .


Search engines. A search engine is a tuple $ \langle \CD , {\cal{Q}}, \textsc{eval}, k \rangle$ . $ \CD$ is the collection of documents indexed. Documents are assumed to have been pre-processed (e.g., they may be truncated to some maximum size limit). $ {\cal{Q}}$ is the space of queries supported by the search engine. $ \textsc{eval}(\cdot)$ is an evaluation function, which maps every query $ \mathbf{q}\in {\cal{Q}}$ to an ordered sequence of documents, called candidate results. The volume of $ \mathbf{q}$ is the number of candidate results: $ \textsc{vol}(\mathbf{q}) = \vert\textsc{eval}(\mathbf{q})\vert$ . $ k$ is the result limit. Only the top $ k$ candidate results are actually returned. These top $ k$ results are called the result set of $ \mathbf{q}$ and are denoted $ \textsc{res}(\mathbf{q})$ . A query $ \mathbf{q}$ overflows, if $ \textsc{vol}(\mathbf{q}) > k$ , and it underflows, if $ \textsc{vol}(\mathbf{q}) = 0$ . Note that if $ \mathbf{q}$ does not overflow, then $ \textsc{eval}(\mathbf{q}) = \textsc{res}(\mathbf{q})$ .

A document $ \mathbf{x}$ matches a query $ \mathbf{q}$ , if $ \mathbf{x}\in \textsc{eval}(\mathbf{q})$ . The set of queries that a document $ \mathbf{x}$ matches is denoted $ \textsc{match}(\mathbf{x})$ .


Search engine samplers. Let $ \pi$ be a target distribution over the document collection $ \CD$ . Typically, $ \pi$ is uniform, i.e., $ \pi(\mathbf{x}) = 1/\vert\CD \vert$ , for all $ \mathbf{x}\in \CD$ . A search engine sampler with target $ \pi$ is a randomized procedure, which generates a random document $ \mathbf{X}$ from the domain $ \CD$ . The distribution of the sample $ \mathbf{X}$ is called the sampling distribution and is denoted by $ \eta$ . Successive invocations of the sampler produce independent samples from $ \eta$ . Ideally, $ \eta = \pi$ , in which case the sampler is called perfect. Otherwise, the sampler is biased. The quality of a search engine sampler is measured by two parameters: the sampling recall, measuring ``coverage'', and the sampling bias, measuring ``accuracy''.

Search engine samplers have only ``black box'' access to the search engine through its public interface. That is, the sampler can produce queries, submit them to the search engine, and get back their results. It cannot access internal data of the search engine. In particular, if a query overflows, the sampler does not have access to results beyond the top $ k$ .

Not all documents in $ \CD$ are practically reachable via the public interface of the search engine. Some pages have no text content and others have very low static rank, and thus formulating a query that returns them as one of the top $ k$ results may be impossible. Thus, search engine samplers usually generate samples only from large subsets of $ \CD$ and not from the whole collection $ \CD$ . The sampling recall of a sampler with sampling distribution $ \eta$ is defined as $ \pi(\textsc{supp}(\eta))$ . For instance, when $ \pi$ is the uniform distribution, the sampling recall is $ \vert\textsc{supp}(\eta)\vert/\vert\CD \vert$ , i.e., the fraction of documents which the sampler can actually return as samples. Ideally, we would like the recall to be as close to 1 as possible. Note that even if the recall is lower than 1, but $ \textsc{supp}(\eta)$ is sufficiently representative of $ \CD$ , then estimators that use samples from $ \textsc{supp}(\eta)$ can produce accurate estimates.

Since samplers sample only from large subsets of $ \CD$ and not from $ \CD$ in its entirety, it is unfair to measure the bias of a sampler directly w.r.t. the target distribution $ \pi$ . Rather, we measure the bias w.r.t. the distribution $ \pi$ conditioned on selecting a sample in $ \textsc{supp}(\eta)$ . Formally, let $ \pi_{\textsc{supp}(\eta)}$ be the following distribution on $ \textsc{supp}(\eta)$ : $ \pi_{\textsc{supp}(\eta)}(\mathbf{x}) = \frac{\pi(\mathbf{x})}{\pi(\textsc{supp}(\eta))}$ for all $ \mathbf{x}\in \textsc{supp}(\eta)$ . The sampling bias of the sampler is defined as the total variation distance between $ \eta$ and $ \pi_{\textsc{supp}(\eta)}$ :

$\displaystyle \vert\vert\eta - \pi_{\textsc{supp}(\eta)}\vert\vert = \frac{1}{2... ...\vert\eta(\mathbf{x}) - \frac{\pi(\mathbf{x})}{\pi(\textsc{supp}(\eta))}\vert}.$
For example, if a sampler generates truly uniform samples from a subset $ \CD '$ of $ \CD$ that constitutes 80% of $ \CD$ , then its sampling recall is 0.8 and its sampling bias is 0.

Since the running time of samplers is dominated by the number of search engine queries they make, we define the query cost of a sampler to be the expected number of search engine queries it performs per sample generated.


4 Monte Carlo methods

We briefly review two of the three Monte Carlo simulation methods we use in this paper: rejection sampling and the Metropolis-Hastings algorithm. Importance sampling cannot be used to construct search engine samplers, but rather only to directly estimate aggregate statistical parameters of the index. It is described in more detail in the full version of this paper. For an elaborate treatment of Monte Carlo methods, refer to the textbook of Liu [19].

The basic question addressed in stochastic simulation is the following. There is a target distribution $ \pi$ on a space $ {\cal{U}}$ , which is hard to sample from directly. On the other hand, we have an easy-to-sample trial distribution $ p$ available. Simulation methods enable using samples from $ p$ to simulate sampling from $ \pi$ , or at least to estimate statistical parameters under the measure $ \pi$ . Simulators need to know the distributions $ \pi$ and $ p$ in unnormalized form. That is, given any instance $ \mathbf{x}\in {\cal{U}}$ , they should be able to compute ``weights'' $ \hat{\pi}(\mathbf{x})$ and $ \hat{p}(\mathbf{x})$ that represent the probabilities $ \pi(\mathbf{x})$ and $ p(\mathbf{x})$ , respectively. By that we mean that there should exist normalization constants $ Z_{\hat{\pi}}$ and $ Z_{\hat{p}}$ s.t. for all $ \mathbf{x}\in {\cal{U}}$ , $ \pi(\mathbf{x}) = \hat{\pi}(\mathbf{x})/Z_{\hat{\pi}}$ and $ p(\mathbf{x}) = \hat{p}(\mathbf{x})/Z_{\hat{p}}$ . The constants $ Z_{\hat{\pi}}$ and $ Z_{\hat{p}}$ themselves need not be known to the simulator. For example, when $ \pi$ is a uniform distribution on $ {\cal{U}}$ , a possible unnormalized form is $ \hat{\pi}(\mathbf{x}) = 1, \forall \mathbf{x}\in {\cal{U}}$ . In this case the normalization constant is $ Z_{\hat{\pi}} = \vert{\cal{U}}\vert$ .


Rejection sampling. Rejection sampling [24] assumes $ \textsc{supp}(\pi) \subseteq \textsc{supp}(p)$ and assumes knowledge of an envelope constant $ C$ , which is at least $ \max_{\mathbf{x}\in {\cal{U}}} \hat{\pi}(\mathbf{x})/\hat{p}(\mathbf{x})$ . The procedure, described in Figure 1, repeatedly calls a sampler $ S$ that generates samples $ \mathbf{X}$ from the trial distribution $ p$ , until a sample is ``accepted''. To decide whether $ \mathbf{X}$ is accepted, the procedure tosses a coin whose heads probability is $ \hat{\pi}(\mathbf{X})/(C \hat{p}(\mathbf{X}))$ (note that this expression is always at most 1, due to the property of the envelope constant).

Figure 1: The rejection sampling procedure
\begin{figure} \begin{center} \small \begin{tabular}{l}  1:\textbf{Function... ... 6:      return $\mathbf{X}$ \ \end{tabular} \end{center} \end{figure}

A simple calculation shows that the distribution of the accepted samples is exactly the target distribution $ \pi$ (hence rejection sampling yields a perfect sampler). The expected number of samples from $ p$ needed in order to generate each sample of $ \pi$ is $ C \cdot Z_{\hat{p}} / Z_{\hat{\pi}} \ge \max_{\mathbf{x}\in {\cal{U}}} \pi(\mathbf{x})/p(\mathbf{x})$ . Hence, the efficiency of the procedure depends on two factors: (1) the similarity between the target distribution and the trial distribution: the more similar they are the smaller is the maximum $ \max_{\mathbf{x}\in {\cal{U}}} \pi(\mathbf{x})/p(\mathbf{x})$ ; and (2) the gap between the envelope constant $ C$ and $ \max_{\mathbf{x}\in {\cal{U}}} \hat{\pi}(\mathbf{x})/\hat{p}(\mathbf{x})$ .


The Metropolis-Hastings algorithm. The Metropolis-Hastings (MH) algorithm [21,13] is a Markov Chain Monte Carlo (MCMC) approach to simulation. Unlike rejection sampling, there is no single trial distribution, but rather different trial distributions are used at different steps of the algorithm. The big advantage over rejection sampling is that no knowledge of an ``envelope constant'' is needed.

The MH algorithm, described in Figure 2, runs a random walk on $ {\cal{U}}$ , starting from a state $ \mathbf{x}_0 \in {\cal{U}}$ . After $ B$ steps (called the ``burn-in period''), the reached state is returned as a sample. The transition probability from state to state is determined by a ``proposal function'' $ T$ , which is a $ \vert{\cal{U}}\vert \times \vert{\cal{U}}\vert$ stochastic matrix (i.e., every row of $ T$ specifies a probability distribution over $ {\cal{U}}$ ). When the random walk reaches a state $ \mathbf{X}$ , it uses the distribution specified by the $ \mathbf{X}$ -th row of $ T$ to choose a ``proposed'' next state $ \mathbf{Y}$ . The algorithm then applies an acceptance-rejection procedure to determine whether to move to $ \mathbf{Y}$ or to stay at $ \mathbf{X}$ . The probability of acceptance is:

$\displaystyle r(\mathbf{X},\mathbf{Y}) = \min \left\{ 1, \frac{\hat{\pi}(\mathb... ...f{Y},\mathbf{X})} {\hat{\pi}(\mathbf{X})  T(\mathbf{X},\mathbf{Y})} \right\}.$

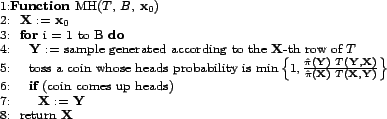

Figure 2: The Metropolis-Hastings algorithm
\begin{figure} \begin{center} \small \begin{tabular}{l}  1:\textbf{Function... ...  8:  return $\mathbf{X}$ \ \end{tabular} \end{center} \end{figure}

It can be shown that for any proposal function satisfying some standard restrictions, the resulting random walk converges to $ \pi$ . This means that if the burn-in period is sufficiently long, the sampling distribution is guaranteed to be close to $ \pi$ . The convergence rate, i.e., the length of the burn-in period needed, however, does depend on the proposal function. There are various algebraic and geometric methods for figuring out how long should the burn-in period be as a function of parameters of the proposal function. See a survey by Diaconis and Saloff-Coste [8] for a detailed review. If the parameters of the proposal function are easy to analyze, one can use these methods to set the parameter $ B$ . Otherwise, empirical methods are used to set $ B$ .


Monte Carlo methods with approximate weights. All Monte Carlo methods assume that the trial distribution $ p$ is known, up to normalization. This assumption turns out to be very problematic in our setting, since the trial distributions we construct depend on unknown internal data of the search engine. The best we can do is come up with an unnormalized weight distribution $ \hat{q}$ , whose normalized form $ q$ is statistically close to $ p$ . To the best of our knowledge, no previous study addressed this scenario before.

The following theorem proves that as long as $ p$ and $ q$ are close, the sampling distribution of rejection sampling is close to the target distribution $ \pi$ :

Theorem 4.1 Let $ \eta$ be the sampling distribution of rejection sampling, when executed with: (1) samples generated from a trial distribution $ p$ ; (2) target weights computed using unnormalized target distribution $ \hat{\pi}$ ; (3) trial weights computed using unnormalized distribution $ \hat{q}$ , whose normalized form $ q$ is not necessarily $ p$ ; and (4) envelope constant $ C \ge \max_{\mathbf{x}\in {\cal{U}}}\hat{\pi}(\mathbf{x})/\hat{q}(\mathbf{x})$ . Then,

$\displaystyle \vert\vert \eta - \pi \vert\vert \le \vert\vert p - q\vert\vert.$
If $ \frac{Z_{\hat{\pi}}}{C Z_{\hat{q}}} > \vert\vert p - q\vert\vert$ , then the expected number of samples from $ p$ needed to generate each sample from $ \eta$ is at most $ 1/(\frac{Z_{\hat{\pi}}}{C Z_{\hat{q}}} - \vert\vert p - q\vert\vert)$ .

We believe that similar analysis is possible also for importance sampling and for the Metropolis-Hastings algorithm, but leave it to future work. Nevertheless, our empirical results indicate that these two methods are not significantly affected by the approximate weights.


5 Pool-based sampler

In this section we describe our pool-based (PB) sampler. A query pool is a fragment $ {\cal{P}}$ of the query space $ {\cal{Q}}$ (e.g., all single term queries, all $ m$ -term conjunctions, or all $ m$ -term exact phrases). A query pool can be constructed by crawling a large corpus of web documents, such as the ODP directory, and collecting terms or phrases that occur in its pages. We can run the PB sampler with any query pool, yet the choice of the pool may affect the sampling bias, the sampling recall, and the query cost. We provide quantitative analysis of the impact of various pool parameters on the PB sampler.

The PB sampler uses as its principal subroutine another sampler, which generates random documents from $ \CD$ according to the ``match distribution'', which we define below. The match distribution is non-uniform, yet its unnormalized weights can be computed efficiently, without submitting queries to the search engine. Thus, by applying any of the Monte Carlo methods on the samples from the match distribution, the PB sampler obtains near-uniform samples. In the analysis below we focus on application of rejection sampling, due to its simplicity. We note that the unnormalized weights produced by the PB sampler are only approximate, hence Theorem 4.1 becomes essential for the analysis.


Preliminaries. $ \pi$ is the target distribution of the PB sampler. For simplicity of exposition, we assume $ \pi$ is the uniform distribution on $ \CD$ , although the sampler can be adapted to work for more general distributions. The unnormalized form of $ \pi$ we use is: $ \hat{\pi}(\mathbf{x}) = 1$ , for all $ \mathbf{x}\in \CD$ .

$ {\cal{P}}$ is any query pool. The set of queries $ \mathbf{q}\in {\cal{P}}$ that overflow (i.e., $ \textsc{vol}(\mathbf{q}) > k$ ) is denoted $ {\cal{P}}_O$ , while the set of queries $ \mathbf{q}\in {\cal{P}}$ that underflow (i.e., $ \textsc{vol}(\mathbf{q}) = 0$ ) is denoted $ {\cal{P}}_U$ . A query that neither overflows nor underflows is called valid. The set of valid queries $ \mathbf{q}\in {\cal{P}}$ is denoted $ {\cal{P}}_+$ and the set of invalid queries is denoted $ {\cal{P}}_-$ .

Let $ \phi$ be any distribution over $ {\cal{P}}$ . The overflow probability of $ \phi$ , $ \textsc{ovprob}(\phi)$ , is $ \Pr_\phi(\mathbf{Q}\in {\cal{P}}_O)$ . Similarly, the underflow probability of $ \phi$ , $ \textsc{unprob}(\phi)$ , is $ \Pr_\phi(\mathbf{Q}\in {\cal{P}}_U)$ .

$ \textsc{match}_{\cal{P}}(\mathbf{x})$ denotes the set of queries in $ {\cal{P}}$ that a document $ \mathbf{x}$ matches. That is, $ \textsc{match}_{\cal{P}}(\mathbf{x}) = \textsc{match}(\mathbf{x}) \cap {\cal{P}}$ . For example, if $ {\cal{P}}$ consists of all the 3-term exact phrases, then $ \textsc{match}_{\cal{P}}(\mathbf{x})$ consists of all the 3-term exact phrases that occur in the document $ \mathbf{x}$ .

We say that $ {\cal{P}}$ covers a document $ \mathbf{x}$ , if $ \textsc{match}_{\cal{P}}(\mathbf{x}) \neq \emptyset$ . Let $ \CD _{\cal{P}}$ be the collection of documents covered by $ {\cal{P}}$ . Note that a sampler that uses only queries from $ {\cal{P}}$ can never reach documents outside $ \CD _{\cal{P}}$ . We thus define $ \pi_{\cal{P}}$ to be the uniform distribution on $ \CD _{\cal{P}}$ . The PB sampler will generate samples from $ \CD _{\cal{P}}$ and hence in order to determine its sampling bias, its sampling distribution will be compared to $ \pi_{\cal{P}}$ .

Let $ \mu$ be any distribution over $ \CD$ . The recall of $ {\cal{P}}$ w.r.t. $ \mu$ , denoted $ \textsc{recall}({\cal{P}},\mu)$ , is the probability that a random document selected from $ \mu$ is covered by $ {\cal{P}}$ . That is, $ \textsc{recall}({\cal{P}},\mu) = \Pr_\mu(\mathbf{X}\in \CD _{\cal{P}})$ . The recall of $ {\cal{P}}$ w.r.t. the uniform distribution is the ratio $ \vert\CD _{\cal{P}}\vert/\vert\CD \vert$ . This recall will determine the sampling recall of the PB sampler.


Match distribution. The match distribution induced by a query pool $ {\cal{P}}$ , denoted $ m_{\cal{P}}$ , is a distribution over the document collection $ \CD$ defined as follows: $ m_{\cal{P}}(\mathbf{x}) = \frac{\vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert}{\textsc{vol}({\cal{P}})}$ . That is, the probability of choosing a document is proportional to the number of queries from $ {\cal{P}}$ it matches. Note that the support of $ m_{\cal{P}}$ is exactly $ \CD _{\cal{P}}$ .

The unnormalized form of $ m_{\cal{P}}$ we use is the following: $ \hat{m}_{\cal{P}}(\mathbf{x}) = \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ . We next argue that for ``natural'' query pools, $ \textsc{match}_{\cal{P}}(\mathbf{x})$ can be computed based on the content of $ \mathbf{x}$ alone and without submitting queries to the search engine. To this end, we make the following plausible assumption: for any given document $ \mathbf{x}\in \CD$ and any given query $ \mathbf{q}\in {\cal{P}}$ , we know, without querying the search engine, whether $ \mathbf{x}$ matches $ \mathbf{q}$ or not. For example, if $ {\cal{P}}$ is the set of single-term queries, then checking whether $ \mathbf{x}$ matches $ \mathbf{q}$ boils down to finding the term $ \mathbf{q}$ in the text of $ \mathbf{x}$ .

Some factors that may impact our ability to determine whether the search engine matches $ \mathbf{x}$ with $ \mathbf{q}$ are: (1) How the search engine pre-processes the document (e.g., whether it truncates it, if the document is too long). (2) How the search engine tokenizes the document (e.g., whether it ignores HTML tags). (3) How the search engine indexes the document (e.g., whether it filters out stopwords or whether it indexes also by anchor text terms). (4) The semantics of the query $ \mathbf{q}$ . Some of the above are not publicly available. Yet, most search engines follow standard IR methodologies and reverse engineering work can be used to learn answers to the above questions.

Since queries typically correspond to the occurrence of terms or phrases in the document, we can find $ \textsc{match}_{\cal{P}}(\mathbf{x})$ , by enumerating the terms/phrases in $ \mathbf{x}$ and deducing the queries in $ {\cal{P}}$ that $ \mathbf{x}$ matches. For example, if $ {\cal{P}}$ is the set of single-term queries, finding all the queries in $ {\cal{P}}$ that $ \mathbf{x}$ matches simply requires finding all the distinct non-stopword terms occurring in $ \mathbf{x}$ .


Query volume distribution. A special distribution over a query pool $ {\cal{P}}$ is the query volume distribution, which we denote by $ v_{\cal{P}}$ . The volume of a query pool $ {\cal{P}}$ , denoted $ \textsc{vol}({\cal{P}})$ , is the sum $ \sum_{\mathbf{q}\in {\cal{P}}}{\textsc{vol}(\mathbf{q})}$ . $ v_{\cal{P}}$ is defined as: $ v_{\cal{P}}(\mathbf{q}) = \frac{\textsc{vol}(\mathbf{q})}{\textsc{vol}({\cal{P}})}$ .

The query volume distribution always has an underflow probability of 0. Yet, the overflow probability may be high, depending on the pool $ {\cal{P}}$ . Typically, there is a tradeoff between this overflow probability and the the recall of $ {\cal{P}}$ : the higher the recall, the higher also is the overflow probability.

Note that sampling queries from $ {\cal{P}}$ according $ v_{\cal{P}}$ seems hard to do, since volumes of queries are not known a priori.


The PB sampler. Assume, for the moment, we have a sampler $ M_{\cal{P}}$ that generates sample documents from the match distribution $ m_{\cal{P}}$ . Figure 3 shows our PB sampler, which uses $ M_{\cal{P}}$ as a subroutine.

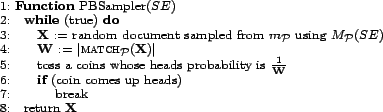

Figure 3: The pool-based (PB) sampler
\begin{figure} \begin{center} \small \begin{tabular}{l}  1: \textbf{Functio... ...  8:   return $\mathbf{X}$ \ \end{tabular} \end{center} \end{figure}

The PB sampler applies rejection sampling with trial distribution $ m_{\cal{P}}$ and target distribution $ \pi_{\cal{P}}$ . The unnormalized weights used for document $ \mathbf{x}$ are $ \hat{\pi}_{\cal{P}}(\mathbf{x}) = 1$ and $ \hat{m}_{\cal{P}}(\mathbf{x}) = \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ . Since $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ is a least $ 1$ for any $ \mathbf{x}\in \textsc{supp}(m_{\cal{P}})$ , then an envelope constant of $ C = 1$ is sufficient. As argued above, we assume the weight $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ can be computed exactly from the content of $ \mathbf{x}$ alone. The following shows that if $ M_{\cal{P}}$ indeed generates samples from $ m_{\cal{P}}$ , then the sampling distribution of the PB sampler is uniform on $ \CD _{\cal{P}}$ . The proof follows directly from the analysis of the rejection sampling procedure:

Proposition 5.1 Let $ \eta$ be the sampling distribution of the PB sampler. If $ M_{\cal{P}}$ generates samples from $ m_{\cal{P}}$ , then $ \textsc{supp}(\eta) = D_{\cal{P}}$ and $ \eta = \pi_{\cal{P}}$ .


Match distribution sampler. In Figure 4 we describe the match distribution sampler. For the time being, we make two unrealistic assumptions: (1) there is a sampler $ V_{\cal{P}}$ that samples queries from the volume distribution $ v_{\cal{P}}$ ; and (2) the overflow probability of $ v_{\cal{P}}$ is 0, although the pool's recall is high (as argued above, this situation is unlikely). We later show how to remove these assumptions.

Figure 4: The match distribution sampler
\begin{figure} \begin{center} \small \begin{tabular}{l}  1: \textbf{Functio... ...  6:   return $\mathbf{X}$ \ \end{tabular} \end{center} \end{figure}

The sampler is very similar to the Bharat-Broder sampler, except that it samples random queries proportionally to their volume. Since no query overflows, all documents that match a query are included in its result set. It follows that the probability of a document to be sampled is proportional to the number of queries in $ {\cal{P}}$ that it matches:

Proposition 5.2 Let $ p$ be the sampling distribution of the match distribution sampler. If the sampler $ V_{\cal{P}}$ generates samples from the volume distribution $ v_{\cal{P}}$ and if the overflow probability of $ v_{\cal{P}}$ is 0, then $ p = m_{\cal{P}}$ .

We next address the unrealistic assumption that the overflow probability of $ v_{\cal{P}}$ is 0. Rather than using $ v_{\cal{P}}$ , which is likely to have a non-zero overflow probability, we use a different but related distribution, which is guaranteed to have an overflow probability of 0. Recall that $ {\cal{P}}_+$ is the set of valid (i.e., non-overflowing and non-underflowing) queries in $ {\cal{P}}$ . We can view $ {\cal{P}}_+$ as a query pool itself (after all, it is just a set of queries). The volume distribution $ v_{{\cal{P}}_+}$ of this pool has, by definition, an overflow probability of 0.

Suppose we could somehow efficiently sample from $ v_{{\cal{P}}_+}$ and use these samples instead of samples from $ v_{\cal{P}}$ . In that case, by Proposition 5.2, the sampling distribution $ p$ of the match distribution sampler equals the match distribution $ m_{{\cal{P}}_+}$ induced by the query pool $ {\cal{P}}_+$ .

Let us return now to the PB sampler. That sampler assumed $ M_{\cal{P}}$ generates samples from $ m_{\cal{P}}$ . What happens if instead it generates samples from $ m_{{\cal{P}}_+}$ ? Note that now there is a mismatch between the trial distribution used by the PB sampler (i.e., $ m_{{\cal{P}}_+}$ ) and the unnormalized weights it uses (i.e., $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ ).

One solution could be to try to compute the unnormalized weights of $ m_{{\cal{P}}_+}$ , i.e., $ \hat{m}_{{\cal{P}}_+}(\mathbf{x}) = \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert$ . However, this seems hard to do efficiently, because $ {\cal{P}}_+$ is no longer a ``natural'' query pool. In particular, given a document $ \mathbf{x}$ , how do we know which of the queries that it matches are valid? To this end, we need to send all the queries in $ \textsc{match}_{\cal{P}}(\mathbf{x})$ to the search engine and filter out the overflowing queries. This solution incurs a prohibitively high query cost. Instead, we opt for a different solution: we leave the PB sampler as is; that is, the trial distribution will be $ m_{{\cal{P}}_+}$ but the unnormalized weights will remain those of $ m_{\cal{P}}$ (i.e., $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ ). This means that the samples generated by the PB sampler are no longer truly uniform. The following theorem uses Theorem 4.1 to bound the distance of these samples from uniformity. It turns out that this distance depends on two factors: (1) the overflow probability $ \textsc{ovprob}(v_{\cal{P}})$ ; and (2) $ \textsc{recall}({\cal{P}}_+,m_{\cal{P}})$ , which is the probability that a random document chosen from $ m_{\cal{P}}$ matches at least one valid query in $ {\cal{P}}$ .

Theorem 5.3 Let $ \eta$ be the sampling distribution of the PB sampler, let $ \alpha = \textsc{recall}({\cal{P}}_+,m_{\cal{P}})$ , and let $ \beta = \textsc{ovprob}(v_{\cal{P}})$ . If $ M_{\cal{P}}$ generates samples from $ m_{{\cal{P}}_+}$ , then $ \textsc{supp}(\eta) = \CD _{{\cal{P}}_+}$ and

$\displaystyle \vert\vert\eta - \pi_{{\cal{P}}_+}\vert\vert \le \frac{\beta - (1 - \alpha)}{1 - \beta}.$
Remark. As shown in the proof of the theorem, $ \beta \ge 1 - \alpha$ always holds, and hence $ \beta - (1 - \alpha)$ is a non-negative quantity.


Volume distribution sampler. We are left to show how to sample queries from the volume distribution $ v_{{\cal{P}}_+}$ efficiently. Our most crucial observation is the following: $ v_{{\cal{P}}_+}$ can be easily computed, up to normalization. Given any query $ \mathbf{q}$ , we can submit $ \mathbf{q}$ to the search engine and determine whether $ \mathbf{q}\in {\cal{P}}_+$ or $ \mathbf{q}\in {\cal{P}}_-$ . In the former case we also obtain $ \vert\textsc{res}(\mathbf{q})\vert = \textsc{vol}(\mathbf{q})$ . This gives the following unnormalized form of $ v_{{\cal{P}}_+}$ : $ \hat{v}_{{\cal{P}}_+}(\mathbf{q}) = \vert\textsc{res}(\mathbf{q})\vert$ for $ \mathbf{q}\in {\cal{P}}_+$ and $ \hat{v}_{{\cal{P}}_+}(\mathbf{q}) = 0$ for $ \mathbf{q}\in {\cal{P}}_-$ . Since we know $ v_{{\cal{P}}_+}$ in unnormalized form, we can apply rejection sampling to queries sampled from some other, arbitrary, distribution $ \phi$ on $ {\cal{P}}$ , and obtain samples from $ v_{{\cal{P}}_+}$ .

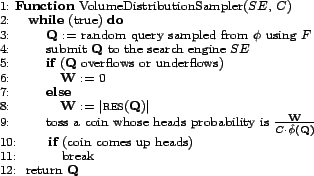

Figure 5: The volume distribution sampler
\begin{figure} \begin{center} \small \begin{tabular}{l}  1: \textbf{Functio... ...  12:  return $\mathbf{Q}$ \ \end{tabular} \end{center} \end{figure}

The volume distribution sampler is depicted in Figure 5. The sampler uses another query sampler $ F$ that generates samples from an easy-to-sample-from distribution $ \phi$ on $ {\cal{P}}$ . $ \phi$ must satisfy $ \textsc{supp}(\phi) \supseteq {\cal{P}}_+$ . (We usually choose $ \phi$ to be the uniform distribution on $ {\cal{P}}$ .) We assume $ \phi$ is known in some unnormalized form $ \hat{\phi}$ and that a corresponding envelope constant $ C$ is given. The target distribution of the rejection sampling procedure is $ v_{{\cal{P}}_+}$ . The unnormalized form used is the one described above. Figuring out the unnormalized weight of a query requires only a single query to the search engine. The following now follows directly from the correctness of rejection sampling:

Proposition 5.4 If the volume distribution sampler is executed with a sampler $ F$ sampling from a distribution $ \phi$ on $ {\cal{P}}$ satisfying $ \textsc{supp}(\phi) \supseteq {\cal{P}}_+$ , then the sampling distribution of the sampler is exactly $ v_{{\cal{P}}_+}$ .


Analysis. The sampling recall and the sampling bias of the PB sampler are analyzed in Theorem 5.3. The query cost is bounded as follows:

Theorem 5.5 Suppose $ \pi$ and $ \phi$ are uniform. Let $ \alpha,\beta$ be as in Theorem 5.3 and let $ \gamma = \textsc{ovprob}(\phi) + \textsc{unprob}(\phi) = \vert{\cal{P}}_-\vert/\vert{\cal{P}}\vert$ . If $ \frac{1 - \beta}{\alpha} \cdot \frac{1}{\textsc{avg}_{\mathbf{x}\in \CD _{{\ca... ...match}_{{\cal{P}}_+}(\mathbf{x})\vert} > \frac{\beta - (1 - \alpha)}{1 - \beta}$ , then the query cost of the PB sampler is at most:
$\displaystyle {\frac{1}{\frac{1 - \beta}{\alpha} \cdot \frac{1}{\textsc{avg}_{\... ...\cal{P}}_+}(\mathbf{x})\vert} - \frac{\beta - (1 - \alpha)}{1 - \beta}} \times}$
$\displaystyle                           \frac{k}{(1 - \gamma) \cdot \textsc{avg}_{\mathbf{q}\in {\cal{P}}_+}\vert\textsc{res}(\mathbf{q})\vert}.$

Hence, the query cost is approximately proportional to the average number of valid queries in $ {\cal{P}}$ that a document matches multiplied by the ratio between the maximum result size (i.e., $ k$ ) and the average result size of valid queries in $ {\cal{P}}$ .


Choosing the query pool. We next review the parameters of the query pool that impact the PB sampler.

(1) Pool's recall. The sampler's recall approximately equals the pool's recall, so we would like pools with high recall. In order to guarantee high recall, a pool must consist of queries that include at least one term/phrase from (almost) every document in $ \CD$ . Since overflowing queries are not taken into account, we need these terms not to be too popular. We can obtain such a collection of terms/phrases by crawling a large corpus of web documents, such as the ODP directory.

(2) Overflow probability. The bias of the PB sampler is approximately proportional to the invalidity probability of the query volume distribution. We thus need the pool and the corresponding query volume distribution to have a low overflow probability. Minimizing this probability usually interferes with the desire to have high recall, so finding a pool and a distribution that achieve a good tradeoff between the two is tricky. $ m$ -term conjunctions or disjunctions are problematic because they suffer from a high overflow probability. We thus opted for $ m$ -term exact phrases. Our experiments hint that for $ m \ge 5$ , the overflow probability is tiny. If the phrases are collected from a real corpus, like ODP, then the underflow probability is also small. The recall of exact phrases is only a bit lower than that of conjunctions or disjunctions.

(3) Average number of matches. The query cost of the PB sampler is proportional to $ \textsc{avg}_{\mathbf{x}\in \CD _{{\cal{P}}_+}}\vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert$ . Hence, we would like to find pools for which the number of matches grows moderately with the document length. $ m$ -term exact phrases are a good example, because the number of matches w.r.t. them grows linearly with the document length. $ m$ -term conjunctions or disjunctions are poor choices, because there the growth is exponential in $ m$ .


6 Random walk based sampler

The random walk (RW) sampler, described in Figure 6, uses the Metropolis-Hastings algorithm to perform a random walk on the documents indexed by the search engine. The graph on these documents is defined by an implicit query pool $ {\cal{P}}$ . All we need to know about $ {\cal{P}}$ is how to compute the match set $ \textsc{match}_{\cal{P}}(\mathbf{x})$ , given a document $ \mathbf{x}$ . We do not need to know the constituent queries in $ {\cal{P}}$ , and thus do not have to crawl a corpus in order to construct $ {\cal{P}}$ .

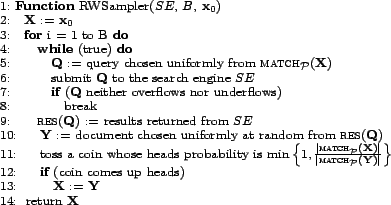

Figure 6: Random walk based sampler
\begin{figure} \begin{center} \small \begin{tabular}{l}  1: \textbf{Functio... ...  14:  return $\mathbf{X}$ \ \end{tabular} \end{center} \end{figure}

As in the previous section, $ {\cal{P}}_+$ denotes the set of valid queries among the queries in $ {\cal{P}}$ . The graph on $ \CD$ induced by $ {\cal{P}}$ , which we denote by $ G_{\cal{P}}$ , is an undirected weighted graph. The vertex set of $ G_{\cal{P}}$ is the whole document collection $ \CD$ . Two documents $ \mathbf{x},\mathbf{y}$ are connected by an edge if and only if $ \textsc{match}_{{\cal{P}}_+}(\mathbf{x}) \cap \textsc{match}_{{\cal{P}}_+}(\mathbf{y}) \neq \emptyset$ . That is, $ \mathbf{x}$ and $ \mathbf{y}$ are connected iff there is at least one valid query in $ {\cal{P}}$ , which they both match. The weight of the edge $ (\mathbf{x},\mathbf{y})$ is set to be:

$\displaystyle w(\mathbf{x},\mathbf{y}) = \sum_{\mathbf{q}\in \textsc{match}_{{\... ...match}_{{\cal{P}}_+}(\mathbf{y})} \frac{1}{\vert\textsc{res}(\mathbf{q})\vert}.$
The degree of a document $ \mathbf{x}$ is defined as:

$\displaystyle \textsc{deg}(\mathbf{x})  =  \sum_{\mathbf{y}\in \CD } w(\mathbf{x},\mathbf{y}).$
The RW sampler runs a random walk on the graph $ G_{\cal{P}}$ , starting from some arbitrary document $ \mathbf{x}_0$ . At each step, if the current document visited is $ \mathbf{x}$ , the sampler chooses a proposed neighboring document $ \mathbf{y}$ with probability $ T(\mathbf{x},\mathbf{y}) = w(\mathbf{x},\mathbf{y})/\textsc{deg}(\mathbf{x})$ . An acceptance-rejection procedure is now invoked, in order to decide whether to move to $ \mathbf{y}$ or stay at $ \mathbf{x}$ . Recall that the acceptance probability of the MH algorithm is defined as:

$\displaystyle r(\mathbf{x},\mathbf{y}) = \min \left\{ 1, \frac{\hat{\pi}(\mathb... ...f{y},\mathbf{x})} {\hat{\pi}(\mathbf{x})  T(\mathbf{x},\mathbf{y})} \right\}.$
In our case the target distribution is the uniform distribution, hence $ \hat{\pi}(\mathbf{x}) = 1$ for all $ \mathbf{x}$ . $ T(\mathbf{y},\mathbf{x}) = w(\mathbf{y},\mathbf{x})/ \textsc{deg}(\mathbf{y})$ while $ T(\mathbf{x},\mathbf{y}) = w(\mathbf{x},\mathbf{y})/\textsc{deg}(\mathbf{x})$ . Since $ w(\mathbf{y},\mathbf{x}) = w(\mathbf{x},\mathbf{y})$ ,

$\displaystyle r(\mathbf{x},\mathbf{y}) = \min \left\{ 1, \frac{\textsc{deg}(\mathbf{x})}{\textsc{deg}(\mathbf{y})} \right\}.$
In order to implement this random walk we need to address three issues: (1) given a document $ \mathbf{x}$ , how do we sample a neighbor document $ \mathbf{y}$ with probability $ w(\mathbf{x},\mathbf{y})/\textsc{deg}(\mathbf{x})$ ? (2) for two given documents $ \mathbf{x},\mathbf{y}$ , how do we calculate the ratio $ \textsc{deg}(\mathbf{x})/\textsc{deg}(\mathbf{y})$ ?; and (3) how do we set the length of the burn-in period of the random walk?


Sampling neighbors. We start with the problem of sampling neighbors according to the proposal function $ T(\mathbf{x},\mathbf{y})$ . To this end, we first come up with following characterization of vertex degrees:

Proposition 6.1 $ \forall \mathbf{x}\in \CD , \textsc{deg}(\mathbf{x}) = \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert$ .
The RW sampler then selects a neighbor $ \mathbf{Y}$ of the currently visited document $ \mathbf{x}$ as follows. First, it computes $ \textsc{match}_{\cal{P}}(\mathbf{x})$ : the set of queries in $ {\cal{P}}$ that $ \mathbf{x}$ matches. Then, it repeatedly chooses random queries from $ \textsc{match}_{\cal{P}}(\mathbf{x})$ and submit them to the search engine, until hitting a valid query $ \mathbf{Q}$ . $ \mathbf{Q}$ is a uniformly chosen query from $ \textsc{match}_{{\cal{P}}_+}(\mathbf{x})$ . Next, we pick a uniformly chosen document $ \mathbf{Y}$ from the result set of $ \mathbf{Q}$ . The following proposition shows that for every $ \mathbf{y}\in \CD$ , the probability to choose $ \mathbf{y}$ in this way is exactly $ w(\mathbf{x},\mathbf{y})/\textsc{deg}(\mathbf{x})$ :
Proposition 6.2 $ \forall \mathbf{y}\in \CD , \Pr(\mathbf{Y}= \mathbf{y}) = w(\mathbf{x},\mathbf{y})/\textsc{deg}(\mathbf{x})$ .


Calculating acceptance probability. Next, we address the issue of how to calculate the acceptance probability. By Proposition 6.1, if the current document is $ \mathbf{x}$ , and the proposed neighbor is $ \mathbf{y}$ , then the acceptance probability should be $ r(\mathbf{x},\mathbf{y}) = \min \{1, \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert/\vert\textsc{match}_{{\cal{P}}_+}(\mathbf{y})\vert\}$ . Yet, our sampler cannot know $ \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert$ and $ \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{y})\vert$ without submitting queries to the search engine. Instead, it uses the following perturbed acceptance probability:

$\displaystyle r'(\mathbf{x},\mathbf{y}) = \min \left\{ 1, \frac{\vert\textsc{... ...}(\mathbf{x})\vert}{\vert\textsc{match}_{{\cal{P}}}(\mathbf{y})\vert} \right\}.$
$ r'(\mathbf{x},\mathbf{y})$ is easy to calculate, since we can compute $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert$ and $ \vert\textsc{match}_{\cal{P}}(\mathbf{y})\vert$ . The problem is that now the acceptance probability and the proposal function are mismatching, and thus the limit distribution is no longer the uniform one. Yet, we observe that the perturbation in the transition matrix of the underlying Markov chain depends on the variability among the validity densities of documents (see definition below). If these validity densities are similar to each other, then the perturbation is insignificant, and thus we do not expect the limit distribution to change by much.

The validity density of a document $ \mathbf{x}$ is defined as:

$\displaystyle \textsc{vdensity}(\mathbf{x}) = \frac{\vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert}{\vert\textsc{match}_{{\cal{P}}}(\mathbf{x})\vert}.$
That is, $ \textsc{vdensity}(\mathbf{x})$ is the fraction of valid queries among the queries that $ \mathbf{x}$ matches. Let $ \mathbf{Y}$ be a uniformly chosen document from $ \CD$ . If $ \textsc{vdensity}(\mathbf{Y})$ has low variance, then for almost all documents, the fraction of valid queries they match is about the same. In the extreme case that this variance is 0, we have: $ r'(\mathbf{x},\mathbf{y}) = r(\mathbf{x},\mathbf{y})$ , implying the limit distribution is the uniform one! When the variance is $ > 0$ , the limit distribution is not uniform any more. Yet, we speculate that a small variance of the validity density would result in a limit distribution which is not too far from uniform. Empirical evidence supports our speculation. Formal analysis is postponed to future work.

Why should the variance of the validity density be small? Typically, the validity density of a document is related to the fraction of popular terms occurring in the document. The fraction of popular terms in documents written in the same language (or even in documents written in languages with similar statistical profiles) should be about the same.


Burn-in period. The length of the burn-in period of the random walk depends on the spectral gap of the Markov Chain's transition matrix. The difference between the largest and second largest eigenvalues determines how quickly the random walk approaches its limit distribution. The bigger the gap, the faster the convergence. Quantitatively, if we want the distribution of samples to be at most $ \epsilon$ away from the limit distribution $ \pi$ , then we need a burn-in period of length $ O(\frac{1}{\alpha}(\log \vert\CD \vert + \log(1/\epsilon))$ , where $ \alpha$ is the spectral gap.

When $ \alpha$ is unknown, one can resort to empirical tests to figure out a sufficient burn-in period length. One approach is to run the MH algorithm several times, and empirically find the minimum burn-in period length $ B$ needed to accurately estimate statistical parameters of the data whose real value we somehow know in advance.

The query cost of the sampler depends on two factors: (1) the burn-in period $ B$ ; and (2) the validity densities of the documents encountered during the random walk. When visiting a document $ \mathbf{x}$ , the expected number of queries selected until hitting a valid query is $ \vert\textsc{match}_{\cal{P}}(\mathbf{x})\vert/ \vert\textsc{match}_{{\cal{P}}_+}(\mathbf{x})\vert$ , i.e., the inverse validity density of $ \mathbf{x}$ .


7 Experimental results

We conducted 3 sets of experiments: (1) pool measurements: estimation of parameters of selected query pools; (2) evaluation experiments: evaluation of the bias of our samplers and the Bharat-Broder (BB) sampler; and (3) exploration experiments: measurements of real search engines.


Experimental setup. For the pool measurements and the evaluation experiments, we crawled the 3 million pages on the ODP directory. Of these we kept 2.4 million pages that we could successfully fetch and parse, that were in text, HTML, or pdf format, and that were written in English. Each page was given a serial id, stored locally, and indexed by single terms and phrases. Only the first 10,000 terms in each page were considered. Exact phrases were not allowed to cross boundaries, such as paragraph boundaries.

In our exploration experiments, conducted in January-February 2006, we submitted 220,000 queries to Google, 580,000 queries to MSN Search, and 380,000 queries to Yahoo!. Due to legal limitations on automatic queries, we used the Google, MSN, and Yahoo! web search APIs, which are, reportedly, served from older and smaller indices than the indices used to serve human users.

Our pool measurements and evaluation experiments were performed on a dual Intel Xeon 2.8GHz processor workstation with 2GB RAM and two 160GB disks. Our exploration experiments were conducted on five workstations.


Pool measurements. We selected four candidate query pools, which we thought could be useful in our samplers: single terms and exact phrases of lengths 3, 5, and 7. (We measured only four pools, because each measurement required substantial disk space and running time.) In order to construct the pools, we split the ODP data set into two parts: a training set, consisting of every fifth page (when ordered by id), and a test set, consisting of the rest of the pages. The pools were built only from the training data, but the measurements were done only on the test data. In order to determine whether a query is overflowing, we set a result limit of $ k = 20$ .

All our measurements were made w.r.t. the uniform distribution over the pool (including the overflow probability). Analysis of the overflow probability of the volume distribution (which is an important factor in our analysis) will be done in future work. The results of our measurements are tabulated in Table 1. The normalized deviation of the validity density is the ratio $ \sigma(\textsc{vdensity}(\mathbf{Y}))/E(\textsc{vdensity}(\mathbf{Y}))$ , where $ \mathbf{Y}$ is a uniformly chosen document.


Table 1: Results of pool parameter measurements

Parameter Single terms Phrases (3) Phrases (5) Phrases (7)
Size 2.6M 97M 155M 151M
Overflow prob. 11.4% 3% 0.4% 0.1%
Underflow prob. 40.3% 56% 76.2% 82.1%
Recall 57.6% 96.5% 86.7% 63.9%
Avg # of matches 5.6 78.8 43.2 29
Avg validity density 2.4% 29.2% 55.7% 67.5%
Normalized deviation of validity density 1.72 0.493 0.416 0.486

The measurements show that overflow probability, average number of matches, and average validity density improve as phrase length increases, while recall and underflow probability get worse. The results indicate that a phrase length of 5 achieves the best tradeoff among the parameters. It has a very small overflow probability (less than 0.5%), while maintaining a recall of 86%. The overflow probability of 3-term phrases is a bit too high (3%), while the recall of the 7-term phrases is way too low (about 64%).

Single terms have a relatively low overflow probability, only because we measure the probability w.r.t. the uniform distribution over the terms, and many of the terms are misspellings, technical terms, or digit strings. Note, on the other hand, the minuscule average validity density.

Since the ODP data set is presumably representative of the web, we expect most of these measurements to represent the situation on real search engines. The only exceptions are the overflow and underflow probabilities, which are distorted due to the small size of the ODP data set. We thus measured these parameters on Yahoo!. The results are given in Table 2. It is encouraging to see that for 5-term phrases, the overflow probability remains relatively low, while the underflow probability goes down dramatically. The elevated overflow probability of 3-term phrases is more evident here.


Table 2: Pool parameter measurements on Yahoo!

Parameter Single terms Phrases (3) Phrases (5) Phrases (7)
Overflow prob. 40.2% 15.7% 2.1% 0.4%
Underflow prob. 4.5% 3.4% 7.2% 12.9%

Evaluation experiments. To evaluate our samplers and the BB sampler, we ran them on a home-made search engine built over the ODP data set. In this controlled environment we could compare the sampling results against the real data.

The index of our ODP search engine consisted of the test set only. It used static ranking by document id to rank query results. A result limit of $ k = 5$ was used in order to have an overflow probability comparable to the one on Yahoo!.

We ran four samplers: (1) the PB sampler with rejection sampling; (2) the PB sampler with importance sampling; (3) the RW sampler; and (4) the BB sampler. All the samplers used a query pool of 5-term phrases extracted from the ODP training set. The random walk sampler used a burn-in period of 1,000 steps. Each sampler was allowed to submit exactly 5 million queries to the search engine.

In Figure 7, we show the distribution of samples by document size. We ordered the documents in the index by size, from largest to smallest, and split them into 10 equally sized deciles. Truly uniform samples should distribute evenly among the deciles. The results show the overwhelming difference between our samplers and the BB sampler. The BB sampler generated a huge number of samples at the top decile (more than 50%!). Our samplers had no or little bias.

Distribution of samples by document size

Figure 7: Distribution of samples by document size.

Figure 8 addresses bias towards highly ranked documents. We ordered the documents in the index by their static rank, from highest to lowest, and split into 10 equally sized deciles. The first decile corresponds to the most highly ranked documents. The results indicate that none of our samplers had any significant bias under the ranking criterion. Surprisingly, the BB sampler had bias towards the 4th, 5th, and 6th deciles. When digging into the data, we found that documents whose rank (i.e., id) belonged to these deciles had a higher average size than documents with lower or higher rank. Thus, the bias we see here is in fact an artifact of the bias towards long documents. A good explanation is that our 5-term exact phrases pool had a low overflow probability in the first place, so very few queries overflowed.

Distribution of samples by document rank

Figure 8: Distribution of samples by document rank.

We have several conclusions from the above experiments: (1) the 5-term phrases pool, which has small overflow probability, made an across-the-board improvement to all the samplers (including BB). This was evidenced by the lack of bias towards highly ranked documents. (2) The BB sampler suffers from a severe bias towards long documents, regardless of the query pool used. (3) Our pool-based samplers seem to give the best results, showing no bias in any of the experiments. (4) The random walk has a small negative bias towards short documents. Possibly by running the random walk more steps, this negative bias could be alleviated.


Exploration experiments. We used our most successful sampler, the PB sampler, to generate uniform samples from Google, MSN Search, and Yahoo!. For complete details of the experimental setup, see the full version of the paper.

Table 3 tabulates the measured relative sizes of the Google, MSN Search, and Yahoo! indices. Since our query pool consisted mostly of English language phrases, our results refer mainly to the English portion of these indices. We also remind the reader that the indices we experimented with are somewhat outdated. In order to test whether a URL belongs to the index, we used a standard procedure [4,12].


Table 2: Relative sizes of major search engines.

Pages from $ \downarrow$ indexed by $ \rightarrow$ Google MSN Yahoo!
Google 46% 45%
MSN 55% 51%
Yahoo! 44% 22%

Figure 9 shows the domain name distributions in the three indices. Note that there are some minor differences among the search engines. For example the .info domain is covered much better by MSN Search than by Google and Yahoo!.

Top-level domain name distribution.

Figure 9: Top-level domain name distribution.



8 Conclusions

We presented two novel search engine samplers. The first, the pool-based sampler, provides weights together with the samples, and can thus be used in conjunction with stochastic simulation techniques to produce near-uniform samples. We showed how to apply these simulations even when the weights are approximate. We fully analyzed this sampler and identified the query pool parameters that impact its bias and performance. We then estimated these parameters on real data, consisting of the English pages from the ODP hierarchy, and showed that a pool of 5-term phrases induces nearly unbiased samples. Our second sampler runs a random walk on a graph defined over the index documents. Its primary advantage is that it does not need a query pool. Empirical evidence suggests that the random walk converges quickly to its limit equilibrium distribution. It is left to future work to analyze the spectral gap of this random walk in order to estimate the convergence rate mathematically.

We note that the bias towards English language documents is a limitation of our experimental setup and not of the techniques themselves. The bias could be eliminated by using a more comprehensive dictionary or by starting random walks from pages in different languages.

Finally, we speculate that our methods may be applicable in a more general setting. For example, for sampling from databases, deep web sites, library records, etc.


REFERENCES

[1] A. Anagnostopoulos, A. Broder, and D. Carmel, Sampling search-engine results, In Proc. 14th WWW, pages 245-256, 2005.

[2] Z. Bar-Yossef, A. Berg, S. Chien, J. Fakcharoenphol, and D. Weitz, Approximating aggregate queries about Web pages via random walks, In Proc. 26th VLDB, pages 535-544, 2000.

[3] J. Battelle, John Battelle's searchblog, battellemedia.com/archives/001889.php, 2005.

[4] K. Bharat and A. Broder, A technique for measuring the relative size and overlap of public Web search engines, In Proc. 7th WWW, pages 379-388, 1998.

[5] E. Bradlow and D. Schmittlein, The little engines that could: Modelling the performance of World Wide Web search engines, Marketing Science, 19:43-62, 2000.

[6] F. Can, R. Nuray, and A. B. Sevdik, Automatic performance evaluation of Web search engines, Infor. Processing and Management, 40:495-514, 2004.

[7] M. Cheney and M. Perry, A comparison of the size of the Yahoo! and Google indices, vburton.ncsa.uiuc.edu/indexsize.html, 2005.

[8] P. Diaconis and L. Saloff-Coste, What do we know about the Metropolis algorithm? J. of Computer and System Sciences, 57:20-36, 1998.

[9] dmoz, The open directory project, dmoz.org.

[10] A. Dobra and S. Fienberg, How large is the World Wide Web? Web Dynamics, pages 23-44, 2004.

[11] M. Gordon and P. Pathak, Finding information on the World Wide Web: the retrieval effectiveness of search engines, Information Processing and Management, 35(2):141-180, 1999.

[12] A. Gulli and A. Signorini, The indexable Web is more than 11.5 billion pages, In Proc. 14th WWW (Posters), pages 902-903, 2005.

[13] W. Hastings, Monte Carlo sampling methods using Markov chains and their applications, Biometrika, 57(1):97-109, 1970.

[14] D. Hawking, N. Craswel, P. Bailey, and K. Griffiths, Measuring search engine quality, Information Retrieval, 4(1):33-59, 2001.

[15] M. Henzinger, A. Heydon, M. Mitzenmacher, and M. Najork, Measuring index quality using random walks on the Web, In Proc. 8th WWW, pages 213-225, 1999.

[16] M. Henzinger, A. Heydon, M. Mitzenmacher, and M. Najork, On near-uniform URL sampling, In Proc. 9th WWW, pages 295-308, 2000.

[17] S. Lawrence and C. Giles, Searching the World Wide Web, Science, 5360(280):98, 1998.

[18] S. Lawrence and C. Giles, Accessibility of information on the Web, Nature, 400:107-109, 1999.

[19] J. S. Liu, Monte Carlo Strategies in Scientific Computing, Springer, 2001.

[20] T. Mayer, Our blog is growing up and so has our index, www.ysearchblog.com/archives/000172.html.

[21] N. Metropolis, A. Rosenbluth, M. Rosenbluth, A. Teller, and E. Teller, Equations of state calculations by fast computing machines, J. of Chemical Physics, 21:1087-1091, 1953.

[22] G. Price, More on the total database size battle and Googlewhacking with Yahoo, blog.searchenginewatch.com/blog/050811-231448, 2005.

[23] P. Rusmevichientong, D. Pennock, S. Lawrence, and C. Lee Giles, Methods for sampling pages uniformly from the World Wide Web, In AAAI Fall Symp., 2001.

[24] J. von Neumann, Various techniques used in connection with random digits, In John von Neumann, Collected Works, volume V. Oxford, 1963.
