1. INTRODUCTION

Dynamic pages will dominate the Web of tomorrow. Indeed, one should stop talking about dynamic pages but, instead, dynamic content. This necessitates architectural change in tandem. In particular, resources that are already deployed near the client such as the proxies that are otherwise underutilized for such content should be employed.

Legitimate strategies include offloading some of the processing to the proxy, or simply enhancing its cache abilities to cache fragments of the dynamic pages and perform page composition. While performance benefits including latency and server load reduction are important factors to consider, issues such as engineering complexity as well as security implication are of even higher priority. Although there have been extensive researches on the subject of optimizations for dynamic content processing and caching, we still lack the insight on what will be the best offloading and caching strategies and their design/deployment tradeoffs.

In this paper, using a representative e-commerce benchmark, we have extensively studied many partitioning strategies. We found that offloading and caching at edge proxy servers achieves significant advantages without pulling database out near the client. Our results show that, under typical user browsing patterns and network conditions, 2~3 folds of latency reduction can be achieved. Furthermore, over 70% server requests are filtered at the proxies, resulting significant server load reduction. Interestingly, this benefit can be achieved largely by simply caching dynamic page fragments and composing the page at the proxy. In fact, advanced offloading strategies can be overly complex and even counter-productive performance-wise if not done carefully. Our investigation essentially boils down to one simple recommendation: if end-to-end security is in place for a particular application, then offload all the way up to the database; otherwise augment the proxy with page fragmentation caching and page composition. While our results are obtained under the .NET framework, we believe they are generic enough to be applicable to other platforms.

The rest of the paper is organized as follows. Section 2 covers related work. Various offloading and caching options are introduced in Section 3, which also discusses important design metrics. Section 4 examines the benchmark used and also some of the most important .NET features employed. Detailed implementations of the offloading/caching options are discussed in Section 5. Section 6 describes the experiment environment. Results and analysis are offered in Section 7. Finally, we summarize and conclude in Section 8.

2. RELATED WORK

Optimizing dynamic content generation and delivery has been widely studied. The main objectives are to reduce client response time, network traffic and server load caused by surges of high volume of requests over wide-area links. Most works focus on how to support dynamic content caching on server side [8][9][17]. Some others also extend their cache to the network edge and show better performance result [10]. Fragment caching [3][4] is an effective technique to accelerate current Web applications which usually generate heterogeneous contents with complex layout. It is provided by today’s common application server product like Microsoft ASP.NET [13] and IBM WebSphere Application Server [6]. ESI [5] proposes to cache fragments at the CDN stations to further reduce network traffic and response time.

Application offloading is another way to improve performance. In Active Cache [2], it is proposed that a piece of code be associated with a resource and be able to be cached too. The cache will execute the code over the cached object on behalf of the server and return the result to the client directly when the object is requested at a later time. With the blurring of application and data on current Web, this scheme becomes less effective. To do more aggressive application offloading, WebSphere Edge Services Architecture [7] suggests that portions of the application such as presentation tier and business logic tier be pushed to the edge server and communicate with the remaining application at the origin server when necessary via the application offload runtime engine. An extreme case of offloading is given by [1]. The full application is replicated on the edge server and database accesses are handled by a data cache which can cache query results and fulfill subsequent queries by means of query containment analysis without going to the back-end.

We focus on the proxies that are already installed near clients. We also examine exclusively on offloading and caching of anything other than the database content, as we believe mature technologies to manage hard states in a scalable fashion across wide-area are yet to be developed. To the best of our knowledge, we are the first to report design and implementation tradeoffs involved in devising partitioning and offloading strategies, along with detailed evaluations. There also has been no work evaluating offloading versus advanced caching mechanisms. Finally, this is the first work we know of that experiments with the .NET framework in this aspect.

3. OFFLOADING AND CACHING OPTIONS ENUMERATED

There are a number of issues to be considered for distributing, offloading and caching dynamic content processing and delivery, they are: 1) available resources and their characteristics, 2) the nature of these applications and 3) a set of design criteria and guidelines. In this section, we discuss these issues in turn.

3.1 Resources Where Offload can be Done

Figure 1 shows graphically various resources involved.

Client. As a user-side agent, client — typically a browser — is responsible for some of the presentation tasks, it can also cache some static contents such as images, logos etc. The number of clients is potentially many; however they usually have limited capacities and are (generally speaking) not trusted.

Proxies. In terms of scale, proxies come second. Proxies are placed near the clients and are thus far from the server end. The typical functionalities of proxies include firewall, and caching of static contents. They are usually shared by many clients and are reasonably powerful and stable. However, except the case of intranet applications, content providers do not have much control over them.

Reverse Proxies. Reverse proxies are placed near the back end server farm and act as an agent of the application provider. They serve the Web request on behalf of the back end servers. Content providers can fully control their behaviors. However, the scale of reverse proxies only goes as far as a content provider’s network bandwidth allows. In this paper, we consider them as part of the server farm.

Server. Servers are where the content provider has the full control. In the context of this section, we speak of “server” as one logical entity. However, as it shall be clear later, “server” itself is a tiered architecture comprised of many machines and hosting the various tiers of the Web application.

As far as dynamic content is concerned, typically only the servers and clients are involved. Proxies, as of today, are incapable of caching and processing dynamic contents. In this discussion, we have also omitted CDN stations as we believe they can be logically considered as an extension of either proxies or reverse proxies. Some of the more recent progresses have been discussed in the Section 2.

3.2 Application Architecture and Offloading Options

Logically, most of the Web applications can be roughly partitioned into three tiers: presentation, business logic, and back end database. The presentation tier collects users’ input and generates Web pages to display results. The business logic tier is in charge of performing the business procedure to complete users’ requests. The database tier usually manages the application data in a relational database.

Based on the 3-tier architecture, N-tier architecture is also possible. The most complex tier in a Web application is the business logic tier. This tier performs application-specific processing and enforces business rules and policies. Because of its complexity, the business tier logic tier itself may be partitioned into smaller tiers, evolving into the N-tier architecture.

Application partitioning and offloading can be applied based on the tier structure of the Web application. Without loss of generality, we only consider Web browser as the application client here. From the back end database to browsers, we can find several candidate partition places.

The first partition place is the database access interface. The ODBC, JDBC, ADO etc. are this kind of interfaces. Current applications use connection strings to specify the database server to be accessed. It is possible to point to a specific remote machine in the connection string.

The second partition place is at the data access layer inside the business logic tier. Because of the complexity of the business logic, it is a common practice to develop a set of database access objects to shield the detail inside the database. Other business logic objects can access data through these objects using simple function calls. The clear-cut boundary at this layer makes it a good candidate of partition point for offloading.

The third partition place is between the presentation tier and the business logic tier. The presentation tier gathers the user input and translates the user request into a processing action at the business layer. The business tier usually provides a single-call interface for each type of requests. The clearly defined interface here provides strong clues for partition.

The fourth partition place is inside the presentation tier. The Web pages generated by the application are structuralized and split into fragments each of which has consistent semantic meaning and life time. The back end servers provide page fragments and composition frameworks. The entire Web page is assembled at the offloading destination. ESI [5] is a good example of this strategy.

Of course, what we have enumerated here is only a starting point. Specifically, within the business logic tier there can be multiple logically legitimate offloading points. However, as we should discuss later, advanced offloading strategies often risk high complexity without clear benefit in return.

3.3 Important Factors to be Considered When Offloading

Having discussed various resources upon which offloading and caching can be performed, and various partitioning strategies, the actual implementation and deployment must consider a number of important factors. In our opinion, the following three are the most important ones: security, complexity and performance.

Security. Sensitivity of data as well as processing that are to be offloaded may vary. A given piece of data and processing can be distributed as far as its security perimeter permits. This is one reason we are concerned with who controls what in the resource distribution earlier. Enforcing security end-to-end only applies to certain Web applications (e.g. intranet) and pays a cost (e.g. VPN overhead) in return.

Complexity. Another factor that should be considered is the engineering cost. Although Web applications are developed according to 3-tier or N-tier architecture, the tier boundaries are usually not clear. This problem is obvious for the tiers that are part of the business logic in an N-tier application.

Even if the tier boundaries are clear, the implementation still cannot be fully automated. For example, application partitioning usually requires transforming some of the LPCs (local procedure call) into RPCs (remote procedure call). Because most of the runtime systems do not support migrating LPC to RPC transparently, source code modification, recompilation and subsequent testing are necessary. If synchronous procedures calls are to be changed to asynchronous calls, the implementation efforts would be even greater.

Performance. Even when resources such as proxies are freely available, distributing the processing and caching must bring significant benefits to justify the additional complexity involved. End user’s latency as well as improvement of scalability are the primary metrics. On this, the network condition is the first critical factor to be considered. Generally speaking, the communication quantity across the partition should be minimized on low bandwidth networks. Likewise, for high latency networks, the frequency of synchronous communication should be reduced. In general, a useful guideline to start with is that communication channel over wide area network should be light weight and stateless.

4. THE PET SHOP BENCHMARK

In order to evaluate different offloading options, we use Microsoft .NET Pet Shop as our benchmark. It comes from Sun’s primary J2EE blueprint application, the Sun Java Pet Store [16] and models a typical e-commerce application, an online pet store. E-commerce sites like this are among the most common Web applications.

Pet Shop is implemented using ASP.NET, and the source code is freely available at [11]. ASP.NET brings several important optimizations and the two of them, stored procedure and output caching will be discussed in the following sections.

4.1 Pet Shop Architecture

The complete 3-tier architecture of Pet Shop is described in the whitepaper at [11]. To illustrate the design, we will look at an example of the interaction between the three tiers as shown in Figure 3.

The presentation tier communicates with browsers directly. It contains Web Forms pages (aspx files), Web Forms user controls (ascx files) and their code-behind classes (in namespace PetShop.Web). Similar to the ASP and JSP page, Web Forms pages represent dynamic pages. The Web Forms user controls represent portions of Web Forms pages and thus can not be requested independently. While the aspx and ascx files contain the visual representation, the code-behind classes contain processing logics. When a request arrives, the specified Web Forms page and Web Forms user controls are loaded. The corresponding code-behind objects responsible for generating responses will initiate calls to the business logic tier for request processing (arrows in Figure 3).

The objects in the business logic tier (in namespace PetShop.Components) accept invocations from the presentation tier. If the processing does not require database interaction, for instance displaying shopping cart content, results are returned right away. Otherwise, the business logic objects will generate database queries through a specific database access class (PetShop.Components.Database). Instances of this class set up database connections, pass database queries through ADO.NET interfaces and return query results to upstream.

The database tier consists of application data and stored procedures. A stored procedure is used to encapsulate a sequence of SQL queries which complete a single task. Using stored procedures, interactions between the business logic tier and the database tier can be reduced, thus increasing performance. For instance, placing an order normally requires several calls between the business tier and the backend database. With stored procedure, an order can be encoded into a string and transferred to the database, where the string is decoded and multiple SQL statements are issued to complete the order. From this perspective, most of the Pet Shop stored procedures are essentially part of the business logic tier. They are included in the database tier simply because they are stored and are executed in the SQL server. This is one example where the boundaries of tiers get blurred.

4.2 ASP.NET Output Caching

The.NET Pet Shop leverages ASP.NET output caching to increase throughput and reduce server load [12]. Similar function is also provided by other products such as IBM WebSphere’s response cache [6][7].When a page is requested repeatedly, the output caching allows subsequent requests to be satisfied from the cache so the code that initially creates the page does not have to be run again. Besides caching the entire page, ASP.NET allows Web Forms user controls to be cached separately. As we will explain in detail in Section 5.3, this feature of fragment caching is what we employ to enhance caching capability at the proxy side.

ASP.NET provides duration and versioning control for each cached entities (Web Form and Web Form user control). Duration specifies the life time of a cached page. Versioning allows caching multiple result pages or page fragments for a single form or control. For example, Product.aspx produces different result pages for different products. Storing a single result page in output cache can hardly gain any benefit since users tend to browse different products. By keeping multiple result pages, the most frequently accessed pages will be cached eventually, saving large amounts of processing time.

5. EXPERIMENT PREPARATION

In this section, we discuss in detail how different offloading and caching strategies are implemented in Pet Shop.

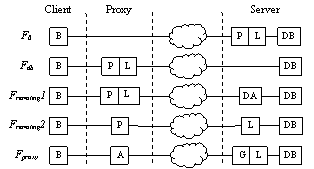

According to the partition points in section 3.3, the following offloading options are investigated: F₀, F_db, F_remoting and F_proxy. They are shown in Figure 4; the legends are:

• B: Browser
• A: Page Assembling and Fragment Caching
• G: Fragment Generation
• P: Presentation
• L': Business Logic except Data Access Layer
• DA: Data Access Layer
• L: Business Logic
• DB: Database
• Cloud: Wide Area Network

The base line is F₀ which leverages neither processing nor caching abilities of proxies. By pushing fragment caching and page assembly to the proxy, we get F_proxy which corresponds to partition place 4. By offloading the presentation tier to proxies, F_remoting2 implements partition point 3. F_remoting1 and F_db are similar except that F_remoting1 leaves the data access layer at back end servers while F_db offloads the complete business logic tier.Therefore, they correspond to partition point 2 and 1, respectively.

We use proxy and front end, server and back end interchangeably in this paper for all configurations other than F₀.

5.1 Implementing F_db

The implementation of F_db is trivial: all we need to do is modify the connection string of the database access interface. The connection string is changed from the default value “server=localhost;...” to “server=some other machine;...” so that the front end is forced to access the remote machine hosting the SQL server.

5.2 Implementing F_remoting

The F_remoting option investigates different ways of offloading inside the business logic tier, in particular the partition point 2 and 3 (see Figure 2). We employ the .NET Remoting feature to accomplish this task, which we will discuss first.

5.2.1 .NET Remoting

Microsoft .NET Remoting provides a rich and extensible framework for objects living in different application domains, in different processes, and in different machines to communicate with each other seamlessly. The framework considers a number of matters, including object passing, remote object hosting strategy, communication channel and data encoding.

Objects can be passed either by reference or by value:

• By value. Objects that would cross application domain boundary, such as the object b in Figure 5, can be passed by value. In .NET Remoting, pass-by-value objects are all marked with Serializable attribute.
• By reference. Objects that reside in only one application domain and provide interfaces to other applications are passed by reference (such as the object a in Figure 5). In .NET Remoting, pass-by-reference objects should be derived from a system class MarshalByRefObject.

For a pass-by-reference object, .NET Remoting provides three hosting strategies to support object activation and lifetime management.

• SingleCall objects’ activation and lifetime are determined by server. They service one and only one request coming in, i.e. different client requests are services by different objects.
• Singleton objects’ activation and lifetime are also determined by server. Unlike the SingleCall objects, Singleton objects service multiple clients and share data by storing state information between client invocations. There is only one singleton object instance of a given class at the server side.
• Client-activated objects’ (CAO) activation and lifetime are determined by client. The server creates an object upon an activation message from client. The object services for the client until the client allows it to be released. If the communication between server and client is stateful, CAO should be used.

For a more in-depth treatment of these hosting strategies, please refer to [14].

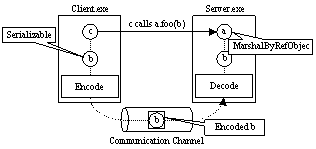

RPC requests and responses are encoded into formatted messages and transferred over a communication channel. In Figure 5, when object c makes a call to object a, the request (including object b as the parameter) is encoded and transferred to the server side. At the server side, the message is decoded and an actual call to object a is made.

5.2.2 Detailed Implementation

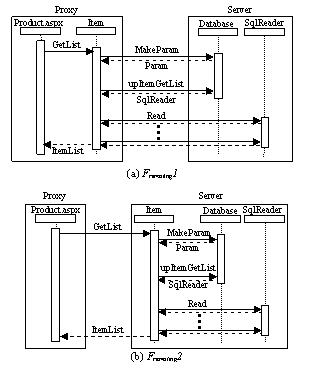

As explained earlier, in F_remoting, we try to partition the application in the logic tier. While there maybe many different options, as an extensive exercise we investigate how to partition at point 2 which separates the data access layer from other business logic layers, and point 3 which is located between the presentation tier and the business logic tier (see Figure 2 and Figure 4).

Regardless of the specific partition strategy, the task in this configuration is always to replace LPC (Local Procedure Call) with RPC (Remote Procedure Call). This entails a few steps. The first is to determine the locations of classes to be run as mandated by a given partitioning strategy (server or proxy) and from there derive the RPC boundaries. The second step is to modify the application source code so that RPC can take effect. Finally, the hosting strategy for objects at server side and communication channel between server and proxy are decided.

Partition place 2 requires the least amount of engineering efforts in that there is only one class to be modified — Database in namespace PetShop.Components. The Database objects run at server side and provide interfaces for the other logical tier objects to access information in the back end database. Thus, they are pass-by-reference objects. For each user request, the responsible logic tier object at proxy side needs to issue multiple procedure calls to server (as shown in Figure 6(a)). Because these calls are related to each other, the state information along the call sequence should be maintained. On the other hand, different user requests need exclusive objects to provide services. Therefore, the only hosting strategy is CAO. This strategy turns out to have a dramatic performance impact: our test runs reveal that the benchmark now performs much worse than not offloading at all. The reason is that multiple RPCs corresponding to a single user request results in multiple round trips between proxy and server. Consequently, partition point 2 is not a good offloading option for Pet Shop. The lesson we learned here is that, under a given partition strategy, the logical constraint and performance constraint may very much be in conflict with each other. What makes this matter even more complex is that this is also application dependent.

Partition point 3 works but with a rather involved manual examination of all candidates. Specifically, all classes in namespace PetShop.Components except Error and Database are affected¹. Some of them will reside at server side only and act as pass-by-reference remote objects, such as Item, Profile, Order, Customer and Profile. The others are pass-by-value objects that will travel between proxy and server, such as ShoppingCart², BasketItem, ItemResults,ProductRe-sults and SearchResults (Actually they are all RPC parameters or responses.). With this strategy, the proxy needs to issue only one RPC for each user request in most cases and no state information is going to be shared among different RPCs (as shown in Figure 6(b)).Moreover, because the objects of Item, Profile, Order, Customer and Profile do not store state data³, there is no difference whether distinct user requests are processed by a shared object or exclusive and different ones. Therefore, all the three hosting strategies are eligible. We conducted an experiment to compare the performance of all of them under the same test condition (as shownin Table 1) and found that SingleCall and Singleton outperforms CAO significantly. In the experiment, we notice that under the same conditions the memory consumption and CPU load on server for CAO is higher than that for SingleCall and Singleton. This may be due to the fact that the server no longer can perform aggressive garbage collection as it can in the other two options.

In the following sections, F_remoting will refer to F_remoting2 using Singleton only. While we did arrive at an adequate partition strategy in the business logic tier for Pet Shop (see performance results in Section 7), our experience pointed out that this is a rather complex process and, even though it is possible to derive a consistent set of guidelines, it will be quite a challenge to perform automatic partitioning.

5.3 Implementing F_proxy

As we described earlier, the goal of F_proxy is much more modest: augment the proxy cache so that it can cache fragments and perform dynamic page assembly. Recall that the objects in the presentation tier of the original Pet Shop are divided into two parts: container pages (Web Forms) and fragments (Web From user controls). Each container page includes placeholders of some fragments.⁴ Their contents, either obtained from the output cache or generated afresh upon a miss, are to be inserted into the container at runtime to compose a complete Web page.

The flow of F_proxy is shown in Figure 7. In order to accomplish this task, we need to 1) replicate the tier responsible for output caching and page assembly at the front-end and 2) make a back-end version of Pet Shop which is the real generator of content.

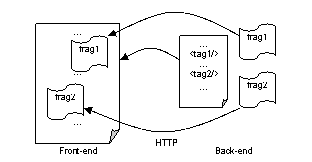

The back-end version is implemented in two steps. First we make each fragment be able to be separately retrieved with a URL like a common Web page. Then in their container pages, we replace the fragment’s placeholder with a special tag that will not be interpreted by ASP.NET but indicate to the front-end that it is to be expanded with the content of a fragment.

We create another application to play the role of output caching and page assembly at the front-end. This application has the same set of pages and fragments as Pet Shop and their containment relationships are also maintained, but no actual content is included. When a page is loaded, the container page and the nested fragments will be loaded in turn. What they actually do is retrieving their corresponding “page” from the output cache in case of cache hits, or from the back-end application otherwise. After the real content has arrived, the page composition begins. The special tags in the fetched container page are replaced with the content of its subordinate fragments. The process will be recursively performed if there are nested containments, until the page is finally composed.

In summary, here are the steps that will occur at runtime:

1. client sends request to proxy
2. proxy fetches container and fragments either from the output cache (now hosted at proxy) or request from backend
3. proxy assemble the page and returns to the client

We should point out that this version of implementation is for a quick evaluation of the F_proxy option and is much more like a hack: there are no modifications to either proxy or .NET framework anywhere, we simply replicate some of the .NET functionality at the proxy side. As a result, it incurs additional overhead that would otherwise absent in a more solid and application-independent implementation, which is one of our ongoing works.

6. EXPERIMENT SETUP

6.1 The Test Bed

There are totally five machines in our experiment: two servers and three clients (as shown in Figure 8). Both servers are powerful machines each with two Pentium4 2.2GHz CPUs, 2GB RAM and two 73GB SCSI disks. The clients are PCs with sufficient power so that they never become bottlenecks in test runs. The three clients are connected to the front end server through a 100Mbps Ethernet switch. In order to avoid contentions between front-end–client communication and front-end–back-end communication, two network adapters are installed on the front end server. The two portions of traffic will go through different network adapters and switches.

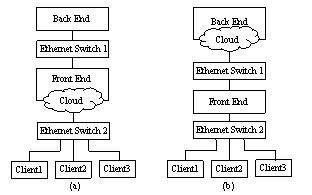

In the test runs, F₀ uses Figure 8(a) while the other three configurations use Figure 8(b).

• For F₀, the front-end server runs the original Pet Shop application and the back-end server runs database.
• For F_remoting, the presentation tier is hosted at the front-end and all the rest, including the business logic tier and the database, are at the back-end.
• For F_db, the original Pet Shop runs at the front-end which accesses the database at the back-end server.
• For F_proxy, the page assembly and fragment caching tier runs at the front-end and the modified Pet Shop runs at the back-end accessing a local database.

The software environment of our test bed is shown in Table 2.

The Shunra\Cloud (version 3.1) [15] is used to emulate network latency in our experiment. It is attached to a network adapter and affects all the IP packets through it. In Figure 8(a), Cloud resides in the front-end server to emulate WAN conditions between clients and Web server. In (b), Cloud is associated with the back-end server to emulate WAN conditions between proxies and content provider’s servers. Cloud only imposes minor additional loads on the server it attaches and its effect is negligible.

6.2 Client Emulation

We use Microsoft Application Center Test (ACT) to emulate surges of clients. For each test, ACT distributes test load to the client machines. Each client creates enough threads to simulate a number of concurrent Web browsers visiting the Web application under test. The actual behavior of the threads is controlled by a test script. In each test, a thread repeats the following steps until the test duration is over. It first opens a persistent HTTP connection to the Web server. Then it chooses a request, sends it to the Web server. After receiving the response, it waits for some thinking time (50 milliseconds in our tests) and chooses the next request and so forth. The selection of the request to send is determined by a state transition diagram, which defines the probability of going to the next request from the previous one. If the thread chooses to exit, it stops sending requests and closes the connection.

The workload generated by the test script roughly follows the distribution shown in Table 3, which corresponds to typical user browsing patterns for such Web site:

6.3 Tuning

Through our experiments, we found it is necessary to fine-tune the configurations so as to eliminate as many side-effects as possible. The major tunings are reported in this sub-section.

6.3.1 Queuing and Threading

ASP.NET assigns processing and I/O jobs (via .NET Common Language Runtime (CLR)) to worker threads and I/O threads in a thread pool with a specified maximum size to process the requests from an incoming queue for the application requested. For some configurations in our experiment, satisfying a request at the front-end server may require accessing external resources (i.e. object, database, page fragment) from the back-end server with a network delay of hundreds of milliseconds. The worker thread has to be blocked and wait for I/O to complete. Therefore a high number of concurrent requests will lead to many blocked threads in the pool as well as pending requests in the queue. To minimize this kind of effect, we make the following adjustments:

1. We set every application’s request queue long enough to guarantee that requests be normally served instead of being rejected with an HTTP message indicating server error when server-side congestion occurs. In reality Web servers limit the length of request queues (for dynamic page) to prevent lengthy response time that is not acceptable to users and therefore save resources for incoming requests. In our experiment we need to measure the normal response time for each request, so we raise the default queue length limit from 100 to 1000.
2. Thread pool size affects performance significantly in a subtle way. Too few threads can render the system under-utilized because there may be many blocked threads. While increasing thread pool size might accelerate processing and improve utilization, it will cause more thread context switch overhead. In our experiment, we tune the thread pool size at the front-end server for each configuration under each test condition (various network latencies and output cache hit ratio) to produce the optimal result (throughput and utilization). In general, a configuration with longer processing time caused by network latency needs a larger thread pool size. For example, when the network latency is 200ms and the output cache hit ratio is 71%, the optimal thread pool size of F₀, F_db, F_remoting and F_proxy is 25, 30, 30 and 50 respectively.

6.3.2 Connection Pooling

In the three configurations other than F₀, the front-end server needs to make heavy communications with the back-end server via TCP. On a network with high latency, the connection overhead becomes prominent due to TCP handshake and slow start effect if no connection pooling is used. In order to prevent this kind of performance degradation, we set appropriate pooling parameters for each configuration according to the connection mechanisms used between the front-end and the back-end.

In F_db configuration, each time the front-end wants to create a connection to the back-end database, the underlying data access component (ADO.NET) will pick a usable matching connection from a pool of a certain size. If there is no usable connection and the size limit is not reached, a new connection will be created. Otherwise the request is queued before a timeout error occurs. When the network latency is high and the work load is heavy, the number of concurrent connections in use would constantly exceed the limit, i.e. the connection pool becomes the bottleneck. Therefore, we set the connection pool size large enough (300 rather than the default 100).

In F_remoting configuration, front-end objects invoke back-end objects through .NET Remoting TcpChannels, which will open connections as many as needed and cache them for later use before close them after 15-20 seconds of inactivity. Since each test run has a warm-up period, there is no negative impact on performance from this setting.

In F_proxy configuration, the front-end needs to retrieve Web objects from the back-end. We set the maximum number of persistent connections high enough (1000)to avoid congestions.

6.4 Measurement

Our experiment consists of two parts. The first part measures the performance of the four configurations under three fixed network latencies (50ms, 200ms and 400ms). The second part measures the performance under several cache hit ratios.

For each test configuration, we vary the number of concurrent connections and run ACT to stress the application and measure the throughput (in terms of requests per second, or RPS), response time (in terms of the time to the last byte of a response) and utilization of the servers (front-end and back-end). Each run starts with a warm-up period (3 minutes), after which ACT begins to collect data about the system status every one second by reading performance counters of processors, memory, network interfaces, ASP.NET, .NET CLR and SQL Server. Data collection traffic only consumes a slight portion of bandwidth compared to client requests and server responses so it interferes little with the network utilization of test load. The collection process will last for 3 minutes and then ACT stops running. Before each test run, we reset the Web server (to flush the cache) and the database tables (to restore the data load) so that the results from different runs are independent.

7. RESULTS AND EVALUATION

In this section, we offer detailed experiment results and analysis. Due to the large number of configuration combinations, we can not present all the data. Thus, we report response time and resource utilization with one representative network latency in Section 7.1, and briefly go over more advanced variations in Section 7.2.

7.1 Basic Results

7.1.1 Response Time

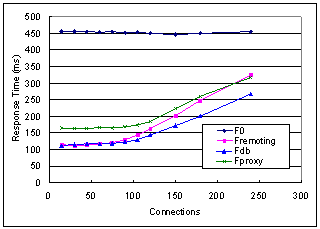

Figure 9 shows the average response time versus concurrent connections number of the four configurations. The cache hit ratio is 71%, and the network latency is 200ms. The loads on the front end server in the three offloading options are higher relative to that of F₀, either due to more processing or higher overhead. This is the reason of the climbing of the latency curves corresponding to the three optimizations. This is an artifact of our test-bed where there is only one proxy and is generally not a concern because proxies are many in real deployment.

When there are less than 300 connections, F_db, F_remoting and F_proxy offer a response time better than F₀. The reduction depends on the network delay. When connection is 15, the reduction is 76%, 75% and 64%, for F_db, F_remoting and F_proxy respectively. In F₀, every time a request is issued from the client, it travels through the delayed link and so does its response. Therefore the response time is always above the network roundtrip time (400ms). In the other three configurations, many requests can be satisfied at the front-end right away. F_db and F_remoting achieve this by replicating the application logic fully or partially from the back-end. F_proxy caches dynamically generated output such as pages and fragments and serves subsequent matching requests from the cache directly or by composing fragments in the cache, thus reducing the frequency of accessing the back-end significantly.

The response time of F_db and F_remoting are very close under small number of connections. This is because their partition points afford them the same back-end access rate and the traffic incurred by each access is enough to be transferred within one roundtrip for both configurations.

Compared to F_proxy, F_db and F_remoting do more than just caching: they are capable of offloading some of logical processing as well. For example, the responses of some requests, such as GET CreateNewAccount.aspx and GET SignIn.aspx, are not cacheable, so they will always go to the back-end in F_proxy. But neither F_db nor F_remoting requires backend access for these requests.

The fact that the cacheable pages occupy a large portion of the test loads is one reason that F_proxy does not lag too far behind. However, there is one more subtle and interesting case where F_proxy actually wins out.

F_proxy is optimized for retrieving Web pages and fragments from the back-end and performing page assembly. When it encounters a request for a page containing fragments, all objects including the container page and the fragments inside that are not cached will be fetched from the back-end asynchronously, allowing them to be downloaded in parallel. After all objects arrive (in any order), they are composed together and a complete page will be returned. While in F_db or F_remoting, due to the fact that the partition points are inside the application logic, all accesses to the back-end such as database query and remote object invocation are blocking. For example in F_remoting, if completing a request needs to call the back-end twice for generating two fragments in the page, the two invocations must be performed sequentially even though the two fragments are independent of each other. The asynchronous retrieving nature of F_proxy saves significant time for processing such pages compared to F_db and F_remoting. For instance, the page Cart.aspx (uncacheable, used for adding, updating and removing items in a shopping cart) contains one cacheable fragment and two uncacheable ones which show a favorite list and a banner respectively. The favorite list and the banner need to query the back-end database and the container page needs too in case of adding an item to the shopping cart. When the network latency is 200ms and the work load is light, it takes F_db and F_remoting 1245ms and 1285ms respectively (both over three roundtrips) but takes F_proxy 784ms to generate the page.

Therefore, we can classify requests into three distinctive classes (with their ratios):

• Class A (71%): cacheable response
• Class B (14%): uncacheable response and may need to access database
• Class C (15%): also uncacheable response but there is no need to access database

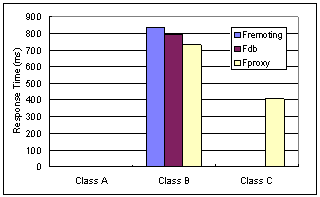

Figure 10 compares the average response time of the requests in each class for F_remoting, F_db and F_proxy. All of them return responses for requests of class A in negligible time. F_proxy wins in class B due to its asynchronous optimization mentioned above. F_remoting responds slower than F_db because it introduces overhead when doing remote object invocations. In class C, both F_db and F_remoting can return responses immediately, while F_proxy has to fetch content from the back-end with significant delay.

7.1.2 Scalability and Server Load Reduction

The other functionality of offloading and caching at proxies is reducing server load so as to achieve better scalability. Since our test-bed consists of only one proxy and one database server, we can only infer from the load distribution among resources. However, all offloading configurations filter at least 70% server requests through proxy for this test script due to the output cache hits.

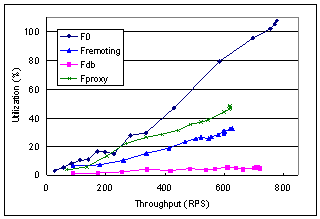

Figure 11 plots the aggregated server loads for all four configurations. Theses are loads that will still remain at the server side regardless in real deployment. The curve of F₀ adds up loads of both the front end (which runs the application) and the backend (the database). Curves of all three offload configurations are the loads on the backend server only and they are:

• F_db: the database
• F­_remoting: the remaining of application logic and the database
• F_proxy: modified Pet Shop application and the database

As we explained earlier, the front end server in these configurations all have higher loads than in F₀, either because of more processing or higher overhead. Consequently, the three curves of the offload configurations do not extend to as high throughput as in F₀ because our front end proxy becomes bottleneck.

As can be seen, in our test environment, the backend database is not the bottleneck. The largest load reduction is achieved with F_db where the functions of application server are taken entirely by the proxies distributed near the client. Because there is still some processing remaining at the back-end in F_remoting, it can not achieve the same level of server load reduction as F_db. As expected, F_proxy is the third and achieves reasonable load reduction comparing to F₀.

In reality, a server complex is made up of a tier of machines running application servers backed by the database machines. The differences between the load curves of F₀, F_remoting, F_proxy and F_db are what will be run on the machines hosting the application servers. It is evident that to achieve identical throughput, F_db will require the least resources inside server complex, followed by F_remoting and F_proxy.

7.2 Advanced Evaluation

7.2.1 Vary Network Latency

We repeat the experiment under two other network latencies: 50ms and 400ms with light server load. The results are shown in the following figure.

There is no major surprise: the response time of F₀ is always over one roundtrip time. Both F_db and F_remoting offer comparable response time and F_proxy is slower but still competitive. As expected, the benefit of offloading/caching at proxy increases with network latency.

7.2.2 Vary Cache Hit Ratio

We repeat the experiment under two other output cache hit ratios: 52% and 30%. The network latency is fixed at 200ms. The response time of the configurations under different hit ratios is shown in Figure 13.

This result is also straightforward: increased cache hit ratio benefits offloading/caching at proxy. We note again that the caching is a more significant factor, though this is specific to this application and the test scripts we used for the experiments.

8. SUMMARY AND CONCLUSION

We believe that Web page as a unit will disappear over time and be replaced by dynamic content that is deeply personalized. Utilizing the proxy servers located near the client to distribute and offload the processing and caching of dynamic content is entirely reasonable. This is all the more so because these edge devices are already deployed and at the same time underutilized as far as dynamic contents are concerned. However, such deployment requires not only the re-engineering of applications themselves, but also the considerations of security issues and careful evaluation of performance benefits.

In this paper, using a representative e-commerce benchmark, we have enumerated extensively many partitioning strategies. Without going into specifics, the following conclusions can be drawn: 1) offloading and caching at edge proxy servers achieves significant advantages without pulling database out near the client. Our results show that, under typical user browsing patterns and network conditions, 2~3 folds of latency reduction can be achieved. Furthermore, over 70% server requests are filtered at the proxies, resulting significant server load reduction. 2) This benefit can be achieved largely by simply caching dynamic page fragments and composing the page at the proxy, whereas advanced offload options are often overly complex and can be counter-productive if not done carefully. 3) Many progresses in the most recent Web programming platform play important roles for this to happen. In the .NET framework, the output caching capability, stored procedures and, to a less extent, the Remoting mechanisms all made significant contributions. 4) The 3-tier Web architecture gives a general guideline but is not as helpful when actual partitioning strategy is devised.

Specifically, we have evaluated the following three partitioning strategies and our findings and recommendations are as follows:

• Replicating all application components except database to the edge provides the best average response time and the highest reduction of back-end server load. It is also the easiest to implement. However, this would be otherwise impossible if not for a highly efficient implementation of database interaction. That is to say, this option will give only disappointing offloading performance if not for the fact that database stored procedure has encapsulated multiple SQL queries within one request. The restriction is that since the complete business logic is pushed to the proxy, this option is suitable only for intranet applications or other situations where end-to-end security is already in place.
• Partitioning the application components and moving some of them on the edge offer similar response time as well as server load reduction. The prerequisites are that the application is carefully partitioned and appropriate RPC mechanism is used. However, it would require considerable engineering cost for a complex Web application that was not designed to be run in a distributed fashion to begin with. Furthermore, if it is impossible to determine the sensitivity of the processing offloaded to the proxy, then this option will require end-to-end security as well. Thus, in view of the simplicity of the database offloading strategy, this option, while theoretically interesting, is unlikely to be justified.
• We find that simply augmenting the capability of proxy today to cache dynamic fragment and compose the complete page is also very effective in terms of latency and server load reduction. The security requirement is minimal because what get cached at proxy are contents, not logics. This option requires change to the original application, but the process can be reasonably automated or comes for free if standard guidelines such as ESI are followed.

Our investigation thus essentially boils down to one simple recommendation: if end-to-end security is in place for a particular application, then offload all the way up to the database; otherwise augment the proxy with page fragment caching and page composition.

Although our experiment was carried out within the .NET framework, the conclusion should be general enough to be valid on other platforms, especially for e-commerce type of applications. Many of the .NET framework and ASP.NET features are shared by other competing platforms. Furthermore, we found that network latencies dominate the performance anyway, and the .NET framework itself contributes negligible overhead in comparison.

The TTL-bound consistency enforcement as is used in this benchmark prevails in today’s Web deployment, largely due to its simplicity. If more advanced, server-driven consistency maintenances are to be taken in the future, we still believe our observation to hold true in general because cache hit ratio will remain the same for all these options. What makes the difference is mainly the amount of processing being offloaded, which is orthogonal to consistency mechanism.

Our future works include a number of directions. We believe while e-commerce application is interesting, they will represent only a small portion in the future given that Web services will grow to cover more Web usage scenarios. Thus, we are actively seeking new applications and repeat our investigations. We are also working on a more robust implementation of caching fragments and page assembly on top of the proxy architecture. Last, but not least, we believe it is important to extend this work to include underprivileged users with slow and narrow connections to the proxies. In such cases, caching at proxy is no longer sufficient: we need such functionality to move to the client side. Our preliminary experiments have indicated that this can bring about significant benefits, even though one no longer enjoys the high caching hit ratio at proxies because of sharing among different users.

9. ACKNOWLEDGMENTS

We thank members of the Media Management Group for their feedback and support. Wei-Ying Ma has been instrumental for this work to get started. We also thank the anonymous reviewers for their helpful comments.
