In this paper we propose a multicast-on-large-demand (MOLD) approach to the flash crowd problem. A MOLD Web server may dynamically open a multicast channel for resources when detecting a very high demand for them, and it reverts back to the normal unicast mode when the flash crowd subsides. A number of mechanisms necessary for realizing the MOLD system are thoroughly discussed. We have implemented the MOLD system in Java and evaluated the performance in a test-bed.
Flash Crowds, Hypertext Transfer Protocol, IP Multicast.
Flash crowd refers to a sudden surge in the demand for certain Web resources in the Internet. Therefore, similar to the effect of a distributed, denial-of service (DDoS) attacks, flash crowd could exhaust a Web site’s resources for accepting new (TCP) connections, processing capability, or network bandwidth [1]. The demand unpredictability makes it very difficult to pre-allocate adequate resources to meet the demand surge. Even when the demand is quite predictable, providing sufficient resources just for the flash event is too costly a general solution [2].
1. HTTP extension: The existing HTTP protocols need extensions to support dynamic opening and closing of multicast channels.
2. HTTP proxying: MOLD proxies must be able to support all possible scenarios involving multicast and unicast channels.
3. On-large-demand multicast channels: An MOLD server must be able to open a multicast channel for very popular resources, in additional to the unicast channels.
4. Multiplexing multiple resources: An MOLD server must be able to aggregate a number of very popular resources in a single multicast channel.
5. Multicast population monitoring: An MOLD server must be able to continuously monitor the population size of a multicast channel in a scalable manner.
6. Adaptive push rate: An MOLD server must be able to adaptively adjust the push rate based on the change rate of the resources sent in the channel.
7. Switching to multicast channels: MOLD clients and proxies must switch from the unicast channel to the announced multicast channel if they support MOLD.
8. Data reliability: The proposed architecture does not assume the availability of forward error correction codes or reliable multicast protocols.
9. Monitoring the channel quality: MOLD clients and proxies must be able to monitor the quality of the multicast channel.
10. Switching back to unicast channels: When switching from a multicast channel back to a unicast channel, the switching must be performed gracefully.

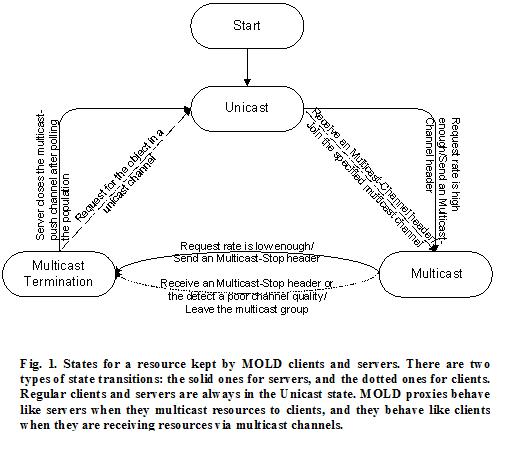

We have defined a minimal set of new HTTP headers to support MOLD. To ensure full compatibility and transparency, we propose that the HTTP version is still maintained at 1.1. In Figure 1, we show the possible states for a resource.
An MOLD server may use a request-rate list (RR-list) and a simple threshold-based decision rule to determine whether a multicast channel should be open for a resource. The request rate can be computed based on weighted time averages. That is, the request rate at the end of ith interval, denoted by Ri, is given by Ri = aMi + (1 - a)Ri-1, where Mi is the instantaneous rate obtained during the ith interval.
There are a few important reasons why an MOLD server needs to know the population size. The primary one is for the server to determine when to close the channel because there are not enough receivers to warrant for it. Another one is to control the size of the multicast group. Managing a multicast group becomes more difficult and inefficient when the group size becomes very large.
Recall that an M-list contains resources that are delivered in a multicast channel, in addition to the regular unicast channel. An important issue to consider concerns how often these resources are pushed into the channel. One simple mechanism is to push a resource whenever it is changed. This asynchronous mechanism, however, suffers from several problems. As a result, we propose to use cyclic transmission schedules to deliver the resources in the M-list. During each cycle, a resource is pushed out at least once.
When an MOLD server decides to move to the Multicast Termination state, it multicasts Multicast-Stop headers several times to make sure that all receivers have received the message. Moreover, an MOLD server may perform population poll before closing the multicast channel. After receiving 0 replies after a consecutive number of polling, the server may safely assume that no one is tuned to the multicast channel and therefore change to the Unicast state.
MOLD client and proxies include a simple timeout mechanism to detect possible multicast channel problems. Recall that an MOLD server includes RA in the Multicast-Channel headers, along with the multicast address and port number. With RA, an MOLD client can choose the timeout value for a requested resource to be /RA, where is least equal to 1. If the requested resource does not arrive within /RA, the channel is not usable.

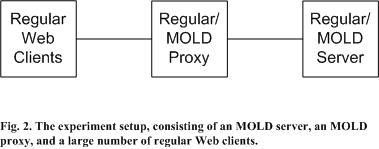

Fig. 2 shows the set-up for the performance studies. All the machines are running RedHat Linux 7.3. Since there will be a lot of concurrent TCP connections during the test, the TCP FIN timeout value is reduced from 180 seconds to 10 seconds, and the TCP keep-alive timeout value is reduced from 7,200 seconds to 30 seconds.

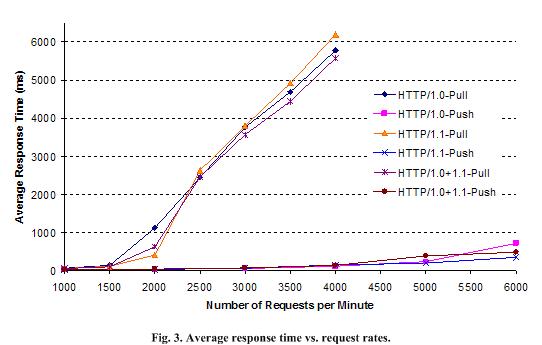

Fig. 3 shows that the average response time rises rapidly with request rate in the cases of unicast delivery. The excessive delay is partially due to the busyness of the server in handling a large number of requests. All three MOLD cases, on the other hand, keep the response time very low.

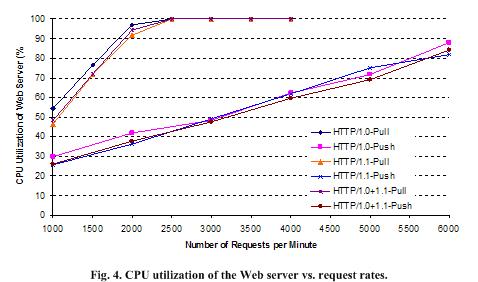

In Fig. 4, all the unicast-pull cases again incur a very large CPU utilization on the server. Although the HTTP/1.1-Pull case incurs the least among the three, they all reach 100% CPU utilization when the request rate reaches 2,500 per minute. The main reason contributing to such high CPU utilizations is due to the fact that the Web server is required to keep a large number of socket connections. There is a protocol control block (PCB) table in the Web server OS that keeps the network connection states. A large PCB table not only consumes more kernel memory, but also consumes more CPU cycles. When the MOLD mechanism is used, the CPU utilizations on Web server do not rise higher than 90% in all the tests, because the server no longer keeps a large number of TCP connections.
