In the next evolution step of the Web, termed the Semantic Web [10], vast amounts of information resources (data, documents, programs) will be made available along with various kinds of descriptive information, i.e., metadata. Better knowledge about the meaning, usage, accessibility or quality of web resources will considerably facilitate automated processing of available Web content/services. The Resource Description Framework (RDF) [39, 12] enables the creation and exchange of resource metadata as any other Web data. More precisely, RDF provides i) a Standard Representation Language for metadata based on directed labeled graphs in which nodes are called resources (or literals) and edges are called properties; ii) a Schema Definition Language (RDFS) [12], for creating vocabularies of labels for these graph nodes (called classes) and edges (called property types); and iii) an XML syntax for expressing metadata and schemas in a form that is both humanly readable and machine understandable. The most distinctive feature of the model of RDF is its ability to superimpose several descriptions for the same Web resources in a variety of application contexts (e.g., advertisement, recommendation, copyrights, content rating, push channels, etc.). Yet, declarative languages for smoothly querying both RDF resource descriptions and related schemas, are still missing.
This ability is particularly useful for real-scale Semantic Web applications such as Knowledge Portals and E-Marketplaces that require the management of voluminous RDF description bases. For instance, in Knowledge Portals such as Open Directory Project (ODP), CNET, XMLTree2, various information resources such as sites, articles, etc. are aggregated and classified under large hierarchies of thematic categories or topics. These descriptions are exploited by push channels aiming at personalizing Portal access (e.g., on a specific theme), using standards like the RDF Site Summary [9]. Furthermore, the entire catalog of Portals can be exported in RDF, as in the case of Open Directory, comprising around 170M of Subject Topics and 700M of indexed URIs. Unfortunately, searching Portal catalogs is still limited to keyword-based retrieval or theme navigation. The same is true for white (or yellow) pages of emerging E-Marketplaces, where descriptions involve not only information about potential buyers and sellers, but also about provided/requested Web services (i.e., programs). Standards like UDDI [22] and ebXML [27] intend to support registries with service advertisements using keywords for categorization under geographical (e.g., ISO 19119), industry (e.g., NAICS) or product (e.g., UNSPSC) classification taxonomies. There is an ongoing effort to express service descriptions and schemas in RDF (e.g., see the RDF version of WSDL [55]) and take benefit from existing RDF support (e.g., query engines) in service matchmaking (i.e., matching service offers with service requests).
It becomes evident that managing voluminous RDF description bases and schemas with existing low-level APIs and file-based implementations [50] does not ensure fast deployment and easy maintenance of real-scale Semantic Web applications. Still, we want to benefit from database technology in order to support declarative access and logical and physical RDF data independence. In this way, Semantic Web applications have to specify in a high-level language only which resources need to be accessed, leaving the task of determining how to efficiently store or access their descriptions to the underlying RDF database engine.
Motivated by the above issues, we propose a new query language for RDF descriptions and schemas. Our language, called RQL, relies on a formal graph model that captures the RDF modeling primitives (i.e., labels on both graph nodes and edges, taxonomies of labels) and permits the interpretation of superimposed resource descriptions. In this context, RQL adapts the functionality of semistructured or XML query languages [1] to the peculiarities of RDF but also extends this functionality in order to uniformly query both RDF descriptions and schemas. Thus, users are able to query resources described according to their preferred schema, while discovering, in the sequel, how the same resources are also described using another classification schema. To illustrate our claims, we are using as a running example a cultural community Web Portal (see Section 2). Then, we make the following contributions:
Finally, in Section 6 we summarize our contribution
and draw directions for further research.
In this section, we briefly
recall the main modeling primitives proposed in the Resource Description
Framework (RDF) Model & Syntax and Schema (RDFS) specifications [39,
12] using as a running example a cultural Portal
catalog. To build this catalog, we need to describe cultural resources
(e.g., Museum Web sites, Web pages with exhibited artifacts) both from
a Portal administrator and a museum specialist perspective. The former
is essentially interested in administrative metadata (e.g., mime-types,
file sizes, modification dates) of resources on the Web, whereas the latter
needs to focus more on their semantic description using notions such as
Artist, Artifact, Museum and their possible relationships. These semantic
descriptions3
can be constructed using existing ontologies (e.g., the International Council
of Museums CIDOC Conceptual Reference Model4)
or vocabularies (e.g., the Open Directory Topics5)
and cannot always be extracted automatically from resource content or links.

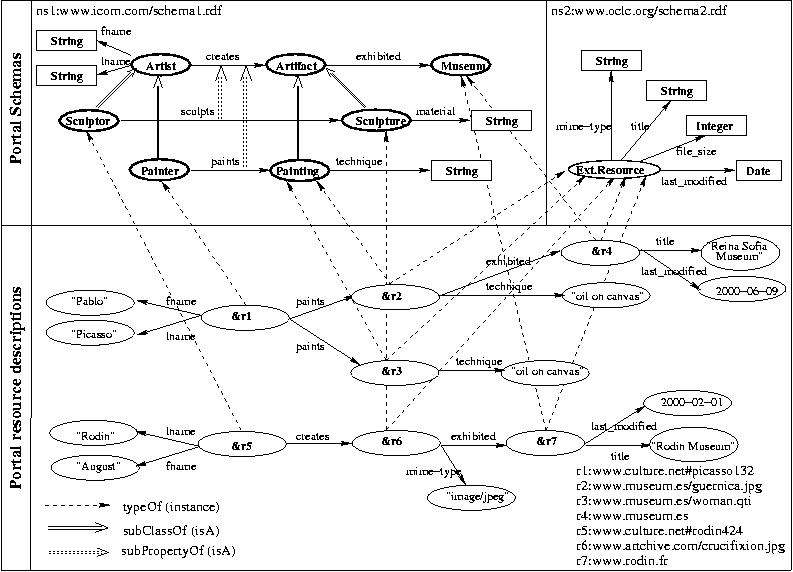

The lower part of Figure 1 depicts the descriptions created for two Museum Web sites (resources &r4; and &r7;) and three images of artifacts available on the Web (resources &r2;, &r3; and &r6;). We hereforth use the prefix & to denote the involved resource URIs (i.e., resource identity). Let us first consider resource &r4;. On the one hand, it is described as an ExtResource having two properties: title with value the string ``Reina Sofia Museum'' and last_modified with value the date 2000/06/09. On the other, &r4; is also classified under Museum, in order to capture its semantic relationships with other Web resources such as artifact images. For instance, we can state that &r2; is an instance of class Painting and has a property exhibited with value the resource &r4; and a property technique with string value ``oil on canvas''. Resources &r2;, &r3; and &r6; are multiply classified: under ExtResource and under Painting and Sculpture respectively. Finally, in order to interrelate artifact resources, some intermediate resources for artists (i.e., which are not on the Web) need to be generated, as for instance, &r1; and &r5;. More precisely, &r1; is a resource instance of class Painter and its URI is given internally by the Portal description base. Associated with &r1; are: a) two paints properties with values the resources &r2; and &r3;; and b) a fname property with value ``Pablo'' and a lname property with value ``Picasso''. Hence, diverse descriptions of the same Web resources (e.g., &r2; as ExtResource and Museum) are easily and naturally represented in RDF as directed labeled graphs. The labels for graph nodes (i.e., classes or literal types) and edges (i.e., properties) are defined in RDF schemas.
The upper part of Figure 1 depicts two
such schemas, intended for museum specialists and Portal administrators
respectively. The scope of the declarations is determined by the corresponding
namespace definition of each schema, e.g., ns1 (www.icom.com/schema1.rdf)
and ns2 (www.oclc.com/schema2.rdf). The uniqueness of schema
labels is ensured by using namespaces as prefixes of the corresponding
class and property names (for simplicity, we will hereforth omit namespaces).
In the former schema, the property creates, is defined with domain
the class Artist and range the class Artifact. Note that
properties serve to represent attributes (or characteristics)
of resources as well as relationships (or roles) between
resources. Furthermore, both classes and properties can be organized into
taxonomies carrying inclusion semantics (multiple specialization is also
supported). For example, the class
Painter is a subclass of Artist
while the property paints (or sculpts) refines creates.
In a nutshell, RDF properties are self-existent individuals (i.e.,
decoupled from class definitions) and are by default unordered (e.g.,
there is no order between the properties fname and lname),
optional (e.g., the property material is not used), multi-valued
(e.g., we have two paints properties), and they can be inherited
(e.g., creates). Note that, although multiple resource classification
can be expressed by multiple class specialization, it is an unrealistic
alternative, since it implies that, for each class C in our cultural
schema, a common subclass of
C and ExtResource has to be
created. However, in a Web setting, resources are usually described by
various communities using their independently developed schemas.
The RDF modeling primitives are reminiscent of knowledge representation languages like Telos [47, 49] as well as of data models proposed for net-based applications such as Superimposed Information Systems [25, 41] and LDAP Directory Services [34, 8]. It becomes clear that the RDF modeling primitives are substantially different from those defined in object or relational database models [4]:
In addition, less rigid models, such as those proposed for semistructured or XML databases [1], also fail to capture the semantics of RDF description bases. Clearly, most semistructured formalisms, such as OEM [48] or UnQL [13], are totally schemaless (allowing arbitrary labels on edges or nodes but not both). Moreover, semistructured systems offering typing features (e.g., pattern instantiation) like YAT [20, 21], cannot exploit the RDF class (or property) hierarchies. Finally, RDF schemas have substantial differences from XML DTDs [11] or the more recent XML Schema proposal [53, 42]: due to multiple classification, resources may have quite irregular structures (e.g., the different descriptions of &r2; and &r4;) modeled only through an exception mechanism a la SGML [33] in the XML proposals. Last but not least, they can't distinguish between entity labels (e.g., Artist) and relationship labels (e.g., creates). On the other hand, XML element content models (i.e., regular expressions) cannot be expressed in RDF since properties are - by default - unordered, optional and multi-valued. As a consequence, query languages proposed for semistructured or XML data (e.g., LOREL [3], StruQL [28], XML-QL [26], XML-GL [16], Quilt [23] or the recent XQuery language [17]) fail to interpret the semantics of RDF node or edge labels. The same is true for the languages proposed to query standard database schemas (e.g., SchemaSQL [38], XSQL [36], Noodle [46]).
Similar difficulties are encountered in logic-based frameworks, which have been proposed for RDF manipulation. For instance, SiLRI [24] proposes some RDF reasoning mechanisms using F-logic [37]. Although powerful, this approach does not capture the peculiarities of RDF: refinement of properties is not allowed (since slots are locally defined within classes), container values are not supported (since it relies on a pure object model), while resource descriptions having heterogeneous types cannot be accommodated (due to strict typing). Metalog [43] uses Datalog to model RDF properties as binary predicates and suggests an extension of the RDFS specification with variables and logical connectors (and, or, not, implies). However, storing and querying RDF descriptions with Metalog almost totally disregards RDF schemas. Furthermore, the recently proposed query language for DAML+OIL [54, 29] (a Description Logic extension of RDF/S) has substantially limited expressive power compared to RQL: only existential quantification is supported, disjunction is expressible only through the implicit existential quantification while (safe) negation, nested queries and aggregate functions are not supported.
Finally, a number of languages [45, 51,
52] have been proposed for querying RDF descriptions
and schemas under the form of triples (i.e., atomic statements). These
languages consider a flat relational representation of RDF statements (i.e.,
a SQL table with attributes subject, predicate, and object), as a logical
model for issuing queries on RDF graphs. Simple RQL queries (i.e.,
without transitive closure on class/property hierarchies) can be easily
rewritten into these languages, leaving to the users the arduous task of
expressing path navigation with explicit join conditions.
In this section we introduce a graph data model bridging and reconciling W3C RDF Model & Syntax with Schema specifications [39, 12]. Compared to the RDF/S specifications, the main contribution of our formal model is the introduction of a type system for RDF schemas, as well as the representation of RDF statements as atomic or complex data values. Then the connection between the two worlds, is ensured by an almost standard type interpretation function. These are two crucial issues for defining the semantics and optimization features of RDF query languages such as RQL. We believe that our model gives a valuable input to ongoing W3C formalization efforts of RDF [31].
RDF resource descriptions [39] are represented as directed labeled graphs whose nodes are called resources (or literals) and edges are called properties. RDFS schemas [12] essentially define vocabularies of labels for graph nodes, called classes or literal types and edges called property types. Both kinds of labels can be organized into taxonomies carrying inclusion semantics (i.e., class or property subsumption).
More formally, each RDF schema uses a finite set of class names C and property names P. Properties are then defined using class names or literal types so that: for each p Î P, domain(p) Î C and range(p) Î C È L, where L is a set of Literal type names like string, integer, date, etc. We denote by H=(N,<) a hierarchy of class and property names, where N = CÈ P. H is well-formed if < is a smallest partial ordering such that: if p1, p2 Î P and p1 < p2, then domain(p1) £ domain(p2) and range(p1)£ range(p2). Additionally, we impose a unique name assumption on H.
In the RDF jargon, a statement is composed of a named edge (a
property) and two end nodes (a resource and a value). Each statement can
be represented by a triple having a subject (e.g.,
&r1;),
a predicate (e.g., fname), and an object (e.g.,
``Pablo''). The subject and object should be of classes compatible (under
specialization) with the domain and range of the predicate6
(e.g., the rdf:typeof &r1; is declared to be the class
Painter).
Note that type declarations in RDF are not only limited to relating resources
and classes, but also to relating schema classes or properties with meta-classes
(e.g., rdfs:Class and
rdf:Property are the two default
RDF meta-classes). Moreover, meta-classes may also appear in the domain
and range of properties. Although not illustrated in Figure 1,
RDF also supports structured values called containers for grouping
statements, namely rdf:Bag (i.e., multi-sets) and rdf:Sequence
(i.e., tuples), as well as higher-order statements (i.e., reification)
which are not treated here. In the rest of the paper, the term description
base will be used to denote a set of RDF statements and the term description
schema to denote one or more well-formed hierarchies of RDF
names used to label RDF statements. Compared to the current status of the
W3C RDF M&S; and RDFS specifications [39, 12],
our model imposes a single domain and range constraint on properties (i.e.,
they are not anymore considered as relations) and provides a richer and
still flexible type system. Readers are referred to [32]
for formal definitions of the imposed constraints. These constraints guarantee
that the union of two well-formed RDF schema hierarchies is always
well-formed provided the inclusion semantics of class and property
subsumption is respected.
RDFS schemas (a) do not impose a strict typing on the descriptions (e.g., a resource may be liberally described using properties which are loosely-coupled with classes); (b) permit superimposed descriptions of the same resources (e.g., by classifying resources under multiple classes which are not necessarily related by subclass relationships); (c) can be easily extended to meet the description needs of specific (sub-)communities (e.g., through specialization of both entity classes and properties).
Thus, RDF data can be literals, resource URIs, container values or class
and property names. The type system foreseen by our model is given below:
where tC is a class, tP is a property, tM is a metaclass, tL is a literal type in L, tU is the type for resource URIs also including namespace URIs, {. } is the Bag type, [.] is the Sequence type, and (.) is the Alternative type. Alternatives in our model capture the semantics of union (or variant) types [14], and they are also ordered (i.e., integer labels play the role of union member markers). Since there exists a predefined ordering of labels for sequences and alternatives, labels can be omitted (for bags, labels are meaningless). Furthermore, no subtyping relation is defined in RDFS. The set of all types we can construct is denoted by T.
This type system allows us to manipulate RDFS schema classes and properties
(as well as meta-classes) as self-existent individuals. Moreover, it captures
containers with both homogeneous and heterogeneous member types and thus
represents - for example - n-ary relations returned by queries.
For instance, unnamed ordered tuples denoted by [v1,
v2, ..., vn]
(where vi is of some type ti)
can be defined as sequences of type [t1,
t2, ..., tn].
Unlike traditional object data models, RDF classes and data properties
(i.e., relationships and attributes of resources) are interpreted as unary
relations of type {tU}
and as binary relations of type {[tU,
tU]}
(for relationships) or {[tU,
tL]}
(for attributes) respectively. In addition, properties whose domain and
range is a meta-class are interpreted as: {[(tC
+ tP),
(tC +
tP )]}.
Finally, an assignment of a finite set of resources (of type tU)
to each class name (of type tC)7
is captured by a population function
p:C® 2U.
In the same way, we can capture instantiation of meta-classes with class
and property names. The set of all values that one can construct from the
class or property names, the resource URIs and the literals using our type
system is denoted by V and the interpretation
function [[ . ]] of types is defined in a straightforward manner. In the
rest of the paper, we will use the terms
class and property extent
to denote their corresponding interpretations.
The nodes and edges of a schema are uniquely identified by their
names in N (possibly using namespace URIs for disambiguation). The
incidence function captures the rdfs:domain and rdfs:range
declarations of properties. The labeling function relates the class
and property names with one of the types T previously presented.
Note that both functions are total in VSÈ
ES and ES
respectively. This does not exclude the case of schema nodes which are
not connected through an edge.
Definition 2 An RDF description base,
instance of a schema RS, is a quintuple RD = (VD,
ED, y, n,
l), where: VD
is a set of nodes and ED is a set of edges,
y is the incidence function
y: ED ®
VD × VD,
n is a value function
n: VD ®
V, and l is a labeling
function l: VD
È ED
® 2N È
{Bag,
Seq, Alt} which satisfies the following:
The valuation function relates the nodes and edges of RDF
statements with one of the values in V. The labeling function
captures the rdf:type declaration, linking the RDF data graph
with the RDF schema graph. More precisely, the labeling function returns
either the name of container type or the name of one or more classes which
may be defined in several well-formed hierarchies of names. In contrast
to traditional object models, all class names annotating resource nodes
have a unique type
tC.
Finally, atomic nodes valuated with literals belong to the interpretation
of concrete types like string, integer, date, etc.
RQL is a typed query language relying
on a functional approach (a la OQL [15]). It
is defined by a set of basic queries and iterators which can be used to
build new ones through functional composition. RQL supports generalized
path expressions, [18, 19,
3] featuring variables on labels for both nodes
(i.e., classes) and edges (i.e., properties). The smooth combination of
RQL schema and data path expressions is a key feature for satisfying
the needs of several Semantic Web applications such as Knowledge Portals
and e-Marketplaces. For the complete RQL syntax, formal semantics
and type inference rules, readers are referred to the
RQL online
documentation.8
The core RQL queries essentially provide the means to access RDF description bases with minimal knowledge of the employed schema(s). These queries can be used to implement a simple browsing interface for RDF description bases. For instance, in Knowledge Portals, for each topic (i.e., class), one can navigate to its subtopics (i.e., subclasses) and eventually discover the resources (or their total number) which are directly classified under them. Similar needs are exhibited for the classification schemas used in E-Marketplace registries.
To traverse class/property hierarchies defined in a schema, RQL provides functions such as subClassOf (for transitive subclasses) and subClassOf^ (for direct subclasses). For example, the query subClassOf^( Artist ) returns a bag with the class names Painter and Sculptor. Similar functions exist for properties (i.e., subPropertyOf and subPropertyOf^). Then, for a specific property we can find its definition by applying the functions domain (of type (tC + tM)) and range (of type tL for attributes and (tC + tM) for relationships). For instance, domain( creates ) returns the class name Artist.
We can access the interpretation of classes by just writing their name. For instance, the query Artist returns a bag containing the URIs www.culture.net#rodin424 (&r5;) and www.culture.net#picasso132 (&r1;), since these resources belong to the extent of Artist. It should be stressed that, by default, we use an extended class (or property) interpretation, that is, the union of the set of proper instances of a class with those of all its subclasses. Thus, RQL allows to query complex descriptions using only few abstract labels (i.e., the top-level classes or properties). In order to obtain the proper instances of a class (i.e., only the nodes labeled with the class name), RQL provides the special operator (``^''): e.g,. ^Artist.
Additionally, RQL uses as entry-points to an RDF description
base not only the names of classes but also the names of properties. For
instance, by considering properties as binary relations, the basic query
creates returns the bag of ordered pairs of resources belonging
to the extended interpretation of creates:
| source | target |
| &r5; | &r6; |
| &r1; | &r2; |
| &r1; | &r3; |
For cases when same names are used in different schemas one can
use a
namespace clause (in the style of XQuery [17])
to explicitly resolve such naming conflicts e.g.,:
ns:title USING NAMESPACE ns=&www.olcl.org;/schema2.rdf#
More generally, the whole schema can be queried as normal data using the names of appropriately defined meta-classes. This is the case of the default RDF meta-classes Class and Property. Using them as basic RQL queries, we obtain in our example, the names of all the classes (of type tC) and properties (of type tP) illustrated in the upper part of Figure 1. Moreover, we can use the name of the built-in meta-class DProperty, in order to retrieve only data properties (i.e., involving data resources). Since RDF allows for instantiation links between classes, this query functionality can be easily extended to user defined meta-schemas (e.g., DAML+OIL [54]). To retrieve the class (or meta-class) name under which a resource (or class) is classified one can use the function typeof: e.g., typeof(www.artchive.com/crucifixion.jpg) will return a bag with the class names Sculpture and ExtResource (due to multiple classification).
Common set operators (union, intersect, minus)
applied to collections of the same type are also supported. For example,
the query "Sculpture intersect
ExtResource" returns a bag with the
URI www.artchive.com/crucifixion.jpg (&r6;), since, according
to our example, it is the only resource classified under both classes.
However, the following query returns a type error since the function range
is defined on names of properties and not on names of classes:9
bag(range(Artist)) union subClassOf(Artifact)
As we can see from the above query, besides class or property extents, RQL also permits the manipulation of RDF container values. More precisely, we can explicitly construct Bags and Sequences using the basic RQL queries bag and seq. For instance, to find both the domain and range of property creates one can issue the query:
For data filtering RQL relies on standard Boolean predicates as =, <, > and like (for string pattern matching). All operators can be applied on literal values (i.e., strings, integers, reals, dates) or resource URIs. For example, ``X = &www.artchive.com;/crucifixion.jpg'' is an equality condition between resource URIs. It should be stressed that this also covers comparisons between class or property names. For example, the condition ``Painter < Artist'' returns true since the first operand is a subclass of the second. This is equivalent to the basic boolean query Painter in subclassof (Artist). Disambiguation is performed in each case by examining the type of operands (e.g., literal value vs. URI equality, lexicographical vs. class ordering, etc.).
Last but not least, RQL is equipped with a complete set of aggregate functions (min, max, avg, sum and count). For instance, we can inspect the cardinality of class extents (or bags) using the count function: count(Painting).
To conclude this subsection, note that basic RQL queries allow
us to retrieve the contents of any kind of collection with RDF data or
schema information. RQL provides a select-from-where filter
to iterate over these collections and introduce variables. Given that the
whole description base or related schemas can be viewed as a collection
of nodes/edges, path expressions can be used in RQL filters
to traverse RDF graphs at arbitrary depths.
In this subsection, we focus on querying RDF schemas, regardless
of any underlying instances. More precisely, we show how RQL extends
the notion of generalized path expressions [18,
19, 3] to entire class
(or property) inheritance paths in order to implement schema browsing or
filtering using appropriate conditions. We believe that declarative query
support for navigating through taxonomies of classes and properties is
quite useful for real-scale Portal catalogs and E-Marketplace registries,
which employ large description schemas. Consider, for instance the following
query, where, given a specific schema property we want to find all related
schema classes:
Q1: Which classes can appear as domain and range of the property
creates?
SELECT $C1, $C2
FROM {$C1}creates{$C2}
| $C1 | $C2 |
| Artist | Artifact |
| Artist | Painting |
| Artist | Sculpture |
| Painter | Artifact |
| Painter | Painting |
| Painter | Sculpture |
| Sculptor | Artifact |
| Sculptor | Painting |
| Sculptor | Sculpture |
In the from clause of the filter, we use a basic schema path expression composed of the property name creates (i.e., an edge label) and two class variables $C1 and $C2 (i.e., variables over node labels). The { } notation is used in RQL path expressions to introduce appropriate schema or data variables (see also next Subsection). In general, class variables are prefixed by $ and - by default - range over the extent of the RDF meta-class Class. The type of these variables is tC, i.e., names of available schema classes. Since RDF properties can be applied to any subclass of their domain and range (due to polymorphism), the expression {$C1}creates{$C2} simply denotes that $C1 and $C2 iterate over subclassof (domain(creates)) and subclassof (range(creates)), respectively (including the hierachy roots). In other words, it is equivalent to the filtering condition ``C1 <= domain(creates) and C2 <= range(creates)'' evaluated over Class × Class (i.e., Class{C1}, Class{C2}). We can observe that the above path expression essentially traverses the rdf:SubClassOf links in the schema graph. It should be stressed that such a kind of RQL path expressions can be composed not only of edge labels like creates, but also of node labels like Artist. Artist{$C} is a shortcut for subclassof(Artist){C} (including the root Artist).
The select clause defines a projection over the variables of interest (e.g., $C1, $C2). Moreover, we can use ``select *'' to include in the result the values of all variables introduced in the from clause. This projection will construct an ordered tuple (i.e., a sequence), whose arity depends on the number of used variables. The result of the filter is a bag. In Q1 the type of the result is { [tC, tC] }. It should be stressed that RDF container values are not strictly typed: their members can be any name, URI, literal or other container value. The union types provided by the RQL type system permit the representation of heterogeneous query results. The closure property of RQL is ensured by the supported basic queries for container values (see previous subsection). For simplicity, we will present query results in this paper using an internal relational representation (e.g., as ¬1NF relations), instead of RDF containers. Readers can execute all example queries with the RQL online demo10 to see the results under the RDF/XML syntax for container values or an HTML form produced after XSLT processing.
Let us now see how we can retrieve all related schema properties for
a specific class:
Q2: Find all properties (and their range) that are applicable
on class Painter.
SELECT @P, range(@P)
FROM {$C}@P
WHERE $C = Painter
| @P | range(@P) |
| creates | Artifact |
| paints | Painting |
| lname | string |
| fname | string |
In the from clause of Q2, we use another schema path expression composed of a class variable $C (i.e., over node labels) and a property variable @P (i.e., over edge labels). In general, property variables are prefixed by @ and by default they range over the extent of the built-in meta-class DProperty, containing all data properties. The type of these variables is tP, i.e., names of available schema properties. Then, for each possible valuation p of @P, the class variable $C ranges over subclassof(domain(p)). The condition in the where clause will filter @P valuations to keep only those properties for which class Painter is equal to their domain (e.g., paints) or is a valid subclass of their domain (e.g., creates, lname, fname). In other terms, Q2 is equivalent to the filtering condition domain(P) >= Painter evaluated over DProperty (i.e., DProperty{P}). We can observe that the above path expression traverses the rdfs:domain and rdfs:range links in conjunction with the rdfs:SubClassOf links in the schema graph. Note that in the result of Q2, range is of type union (tC + tL) since data properties may range to classes (i.e., they represent relationships) and literal types (i.e., they represent attributes).
We introduce in path expressions the notation {x;C} that filters data nodes x (i.e., resources) which are labeled with a class name C (i.e., the rdf:type links). In other terms, it is equivalent to the filtering condition `` C in typeof(x)''. By extension, {;C} simply denotes a filtering condition of schema nodes (i.e., classes) identified by a name C and taking into account the rdfs:SubClassOf links. For instance, in the expression {;Painter}@P the domain of @P is denoted to be Painter or any of its superclasses and it implies the filtering condition ``Painter >= domain(@P)''. It is essentially, a shorthand notation for Q2 by avoiding to introduce an iterator $C (i.e., class variable) over the subclassof(domain(@P))).
To illustrate the expressive power of the RQL schema querying
capabilities combined with its functional semantics, consider the following
query:
Q3: Find all information related to class Painter (i.e., its
superclasses as well as direct or inherited properties).
seq( Painter, superclassof^(Painter), (SELECT @P, domain(@P), range(@P)
FROM {;Painter}@P)
)
To collect all relevant information we explicitly construct in Q3
a sequence with three elements. The first element is a constant (Painter)
interpreted by the RQL type system as a class name (i.e., of type
tC).
The second element is a bag containing the names of the direct superclasses
of Painter (i.e., of type { tC
}). The third element is a bag of sequences with three elements: the first
of type property names (tP)
and the other two of type union (i.e., Alternative) of class and literal
type names (as in Q2).
We conclude this subsection, with a query illustrating how RQL schema
paths can be composed to perform more complex schema navigation. It should
be stressed that this kind of queries cannot be expressed in existing languages
with schema querying capabilities (e.g., XSQL [36]).
Q4: What properties can be reached (in one step) from the
range classes of creates?
SELECT $Y, @P, range(@P)
FROM creates{$Y}.@P
| $Y | @P | range(@P) |
| Artifact | exhibited | Museum |
| Painting | exhibited | Museum |
| Sculpture | exhibited | Museum |
| Painting | technique | string |
| Sculpture | material | string |
In Q4, the ``.'' notation implies a join condition
between the range classes of the property creates
and the domain of @P valuations: for each class name Y in
the range of creates, we look for all properties whose domain is $Y
or a superclass: $Y <=
domain(@P) and $Y
<= range(creates). In other words, this join condition
will enable us to follow properties which can be applied to range classes
of creates (i.e., either because they
are directly defined or because they are inherited) to any subclass of
the range of
creates. Schema path expressions
may also be exclusively composed of property variables (with or without
variables on domains and ranges). For instance, @P.@Q will
retrieve all two-step schema paths emanating from the subclasses of the
domain of @P and whose second part is either inherited from / defined
on superclasses / subclasses of the domain of @Q. The complete set

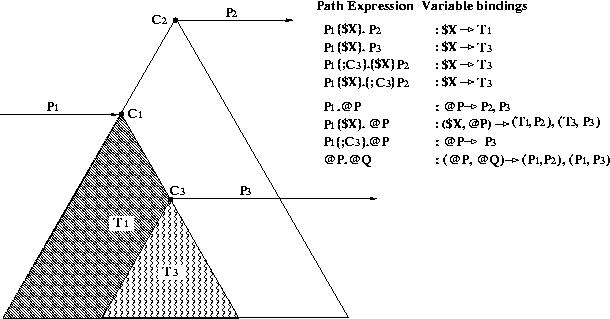

of RQL schema path expressions is given in Figure 2,
where for each kind of expression, we give the part of the schema graph
over which the involved variables range.
In this subsection, we illustrate how RQL generalized
path expressions can be used to navigate/filter RDF description bases without
taking into account the (domain and range) restrictions implied by the
properties defined in an RDF/S schema. This is quite useful since, in most
real-scale Knowledge Portals or E-Marketplaces, resources can be multiply
classified and several properties coming from different class hierarchies
may be used to describe the same resources. In this context, RQL
generalized path expressions may be liberally composed from node and edge
labels featuring both data or schema variables. As explained in the following,
the ``.''
notation is used to introduce appropriate join conditions
between the left and the right part of the expression depending on the
type of each path component (i.e., node vs. edge labels, data vs. schema
variables). Consider, for instance, the following query:
Q5: Find the Museum resources that have been modified after
year 2000.
SELECT X, Y
FROM Museum{X}.last_modified{Y}
WHERE Y >= 2000-01-01
In the from clause we use a data path expression with a class name Museum and a property name last_modified. The introduced data variables X and Y range respectively over the extent of the class Museum (i.e., traversing the rdf:type links connecting schema and data graphs) and the target values of the extent of the last_modified property (i.e., traversing properties in the RDF data graph). The ``.'' used to concatenate the two path components, implies a join condition between the source values of the extent of last_modified and X. Hence, Q5 is equivalent to the query Museum{X}, {Z}last_modified{Y} where X = Z. As we can see in Figure 1, the last_modified property has been defined with domain the class ExtResource but, due to multiple classification, X may be valuated with resources also labeled with any other class name (e.g., Museum, Artifact, etc.). Yet, in our model X has the unique type tU, Y has type the literal type date, and the result of Q5 is of type {[tU, date]}. According to our example, Q5 returns the sites www.museum.es (&r4;) with last modification date 2000-06-09 and www.rodin.fr (&r7;) with date 2000-02-01.
More complex forms of navigation through RDF description bases are possible,
using several data path expressions.
Q6: Find the names of Artists whose Artifacts are exhibited
in museums, along with the related Museum titles.
SELECT V, R, Y, Z
FROM {X}creates.exhibited{Y}.title{Z}, {X}fname{V}, {X}lname{R}
In the from clause we use three data path expressions. Variable X (Y) ranges over the source (target) values of the creates (exhibited) property. Then, the reuse of variable X in the other two path expressions simply introduces implicit (equi-)joins between the extents of the properties fname/lname and creates, on their source values. Since the range of property exhibited is the class Museum we don't need to further restrict the labels for the Y values in this query.
Note that due to multiple classification of nodes (e.g., www.museum.es
(&r4;) is both a Museum and ExtResource)
we can query paths in a data graph that are not explicitly declared in
the schema. For instance, creates.exhibited.title
is not a valid schema path since the domain of the title property
is the class
ExtResource and not Museum.
Still, we can query the corresponding data paths by ignoring the schema
classes labeling the endpoint instances of the properties (in the style
of LOREL [3], or XQuery [17]).
This is achieved by using only data variables on path nodes like X,
Y and Z. However, the flexibility of RQL path expressions
enables us to turn on or off schema information during data
filtering with the use of appropriate class and property variables. This
functionality is illustrated in the following query:
Q7: Find the source and target values of properties emanating
from ExtResources.
SELECT X, Y
FROM {X;ExtResource}@P{Y}
| X | Y |
| &r6; | ``image/jpg'' |
| &r7; | ``Rodin Museum'' |
| &r4; | ``Reina Sofia Museum'' |
| &r7; | 2000-06-09 |
| &r4; | 2000-02-01 |
The mixed path expression of Q7, features both data (X,
Y)
and schema variables on graph edges (@P). The notation
X;ExtResource
denotes a restriction of X to the resources that are (transitive)
instances of (i.e., labeled by) class ExtResource.
@P is of type tP
and is valuated to all properties having as a domain ExtResource
or one of its superclasses (see Q2). Finally, Y is range-restricted,
for each successful binding of @P, to the corresponding target values.
X is of type tU
while Y type is a union of all the range types of ExtResource
properties. According to the schema of Figure 1,
@P is valuated to file_size,
title, mime-type,
and last_modified, while Y will
be of type (integer + string + date).11
It should be stressed that the data path expression ExtResource{X}.@P{Y}
returns as result not only the values of the properties having as a domain
ExtResource but also those with domain
any class under which instances of ExtResource
are multiply classified (e.g., exhibited,
technique).
In the previous subsections, we have presented the main
RQL path expressions allowing us to browse and filter description
bases with or without schema knowledge, or, alternatively to query exclusively
the schemas. Additionally, RQL filters admit arbitrary mixtures
of different kinds of path expressions. In this way, one can start querying
resources according to one schema, while discovering in the sequel how
the same resources are described using another schema. To our knowledge,
none of the existing query languages has the power of
RQL path expressions.
This functionality is illustrated by the following examples.
Q8: Find the descriptions of resources whose URI matches "www.museum.es".
SELECT X, (SELECT $W, (SELECT @P, Y
FROM {X;$W}@P{Y})
FROM $W{X})
FROM Resource{X}
WHERE X like "www.museum.es"
In Q8 we are interested to discover for each matching resource
(Resource is considered as the top
class of all schema classes) the classes under which it is classified and
then for each class the properties which are used along with their respective
values. This grouping functionality is captured by the two nested queries
in the
select clause of the external query. Note the use of string
predicates such as like on resource URIs. Then for each successful
valuation of X, in the outer query, variable $W iterates
over the classes having X in their extent. Finally, for each successful
valuation of X and $W, in the inner query, variable @P
iterates over the properties which may have $W as domain and X
as source value in their extent. According to the example of Figure 1
the type of Y is the union (tU
+ string + date). The final result of Q8 is given

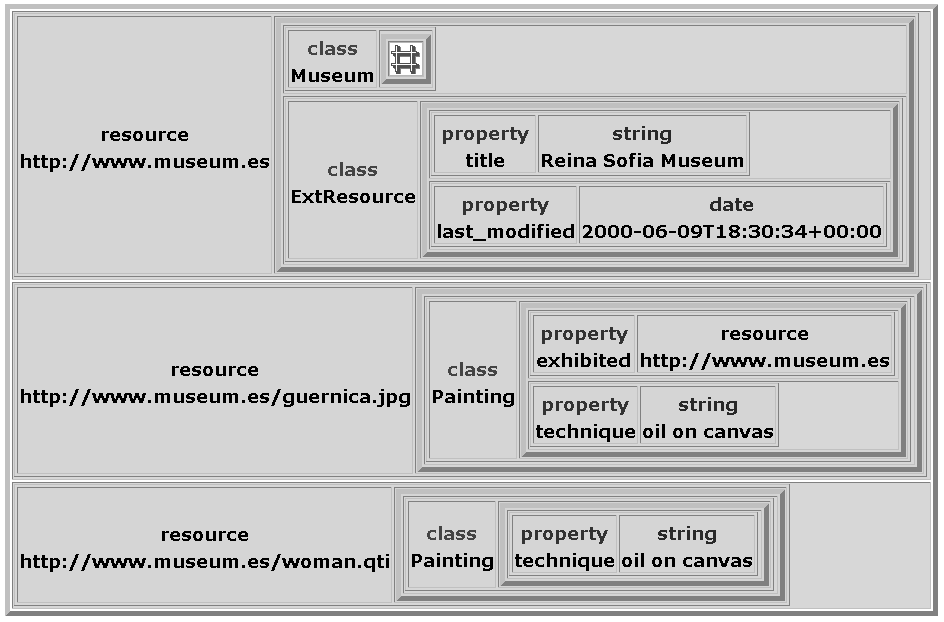

in Figure 3.
In cases where a grouped form of
RQL results is not desirable, we can easily generate a flat triple-based
representation (i.e., subject, predicate, object) of resource descriptions,
as in the following query:
Q9: Find the description, under the form of triples, of resources
excluding properties related to the class ExtResource.
(
(SELECT X, @P, Y FROM {X}@P{Y})
union
(SELECT X, type, $W FROM $W{X})
)
minus
(
(SELECT X, @P, Y FROM {X;ExtResource}@P{Y})
union
(SELECT X, type, ExtResource FROM ExtResource{X})
)
In Q9 we essentially perform a set difference between the entire
set of resource descriptions (i.e., the attributed properties and their
values, as well as, the class instantiation properties) and the descriptions
of resources which are instances of class ExtResource.
The only subtle issue in Q9 is the typing of the two union query
results. First, the inferred type for the constants
type and ExtResource
(in the select clause of the two union subqueries) is tP
(i.e., a property name) and
tC
(i.e., class name). Second, variables Y and $W (in the select
clause of the first union) is of type (tU
+
string + float + integer + date) and tC.
In this case, the union operation is performed between subqueries of different
types. The RQL type system is equipped with rules allowing us to
infer appropriate union types whenever it is required for query evaluation,
as for example, (tU
+ string + float + integer + date +
tC).
Note that set-based queries as Q9 are not supported by the so-called
triple-based query languages [45, 51,
52].
We have implemented RDF storage and
querying on top of the PostgreSQL object-relational DBMS (ORDBMS).12
In order to load RDF metadata in a ORDBMS, we consider a database representation depending on the employed RDF schemas (similar to the attribute-based approach for storing XML data [30]). Many proposals [44, 40] use a single table to represent RDF metadata under the form of triples. These approaches provide a generic representation applicable to all RDF schemas, where both RDF schemas and resource descriptions are stored in two tables called Resources and Triples. The former represents each resource, whereas the latter represents statements about the resources identified by a unique id. Compared to this representation, our scheme is more flexible as it takes into account the specificity of the schemas (see [7] for a performance analysis).

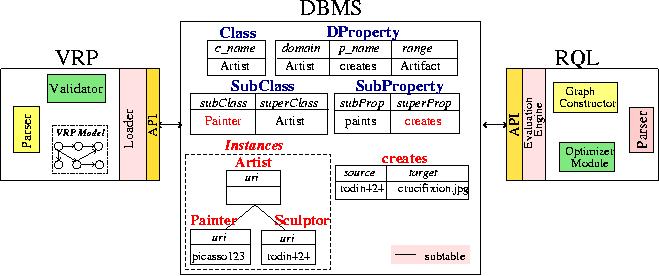

In our approach, the core RDF/S model is represented by four tables (see Figure 4), namely, Class, Property, SubClass and SubProperty which capture the class and property hierarchies defined in an RDF schema. The main goal is the separation of RDF schema information from data information, as well as the distinction between unary and binary relations holding the instances of classes and properties. More precisely, class tables store the URIs of resources, while property tables store the URIs of the source and target nodes of the property. Indices (i.e., B-trees) are constructed on the attributes URI, source and target of the above tables, as well as on all the attributes of the tables Class, Property, SubClass and SubProperty.
Since no representation is good for all purposes, variations of a basic
representation are required to take into account the specific characteristics
of the employed schema classes and properties, as well as those of the
intended query functionality. Our aim here is to reduce the total number
of created instance tables. This is justified by the fact that some commercial
ORDBMSs (and not PostgreSQL) permit only a limited number of tables. Furthermore,
numerous tables (e.g., the ODP catalog implies the creation of 252840 tables,
i.e., one for each topic) have a significant overhead on the response time
of all queries (i.e., to find and open a table, its attributes, etc.).
A variant we have experimented with for storing the ODP catalog, is the
representation of all class instances by a unique table Instances.
This table has two attributes, namely uri and classid,
for storing the uri's of the resources and the id's of the classes which
the resources belong to. The benefits of this variant are illustrated in
the following section. These benefits arise as a consequence of the fact
that most ODP classes (i.e., topics) have few or no instances at all (more
than 90% of the ODP topics contain less than 30 URIs). Another variant
could be the representation of properties with range a literal type, as
attributes of the tables created for the domain of this property. Consequently,
new attributes will be added to the created class tables. The tables created
for properties whose range is a class will remain unchanged. The above
representation is applicable to RDF schemas where attribute-properties
are single-valued and they are not specialized. Multi-valued attributes
can always be represented in a pure relational schema by separate tables
but this implies an extra translation cost by the
RQL interpreter.
More on RQL query evaluations plans can be found in [35].
For our performance study we used as a testbed the RDF dump of the Open Directory Catalog (01-16-2001 version). Experiments have been carried out on a Sun with two UltraSPARC-II 450MHz processors and 1 GB of main memory, using PostgreSQL (7.0.2). We have loaded 15 ODP hierarchies with a total number of 252825 topics stored in 51MB of RDF/XML files as well as the corresponding descriptions of 1770781 resources (672MB). Note that only 82744 resources were actually classified under multiple ODP classes/topics.
We have measured the database size required to load the ODP schema and resource descriptions in terms of triples. As expected, the size of the DBMS scales linearly with the number of schema and data triples. The tests show that each schema triple requires on the average 0.086KB. The average time for loading a schema triple is about 0.0021 sec. When indices are constructed, the average storage volume per schema triple becomes 0.1734KB and the average loading time becomes 0.0025 sec. The average space required to store a data triple is 0.123KB. Note that we could obtain better storage volumes by encoding the resource URIs as integers, but this solution comes with extra loading and join costs (between the class and property tables) for the retrieval of the URIs. The tests also show that the average time for loading a data triple is about 0.0033 sec whithout indices and 0.2566KB with indices while the average loading time becomes 0.0043 sec.
To summarize, after loading the entire ODP catalog, the size of tables
is 32MB for Class (252825 tuples), 8KB for Property (5
tuples), 11MB for SubClass (252825 tuples) and the total size
of indices on these tables is 44MB. The size of table Instances
is 150MB (1770781 tuples) whereas that of the indices created on it is
140 MB.

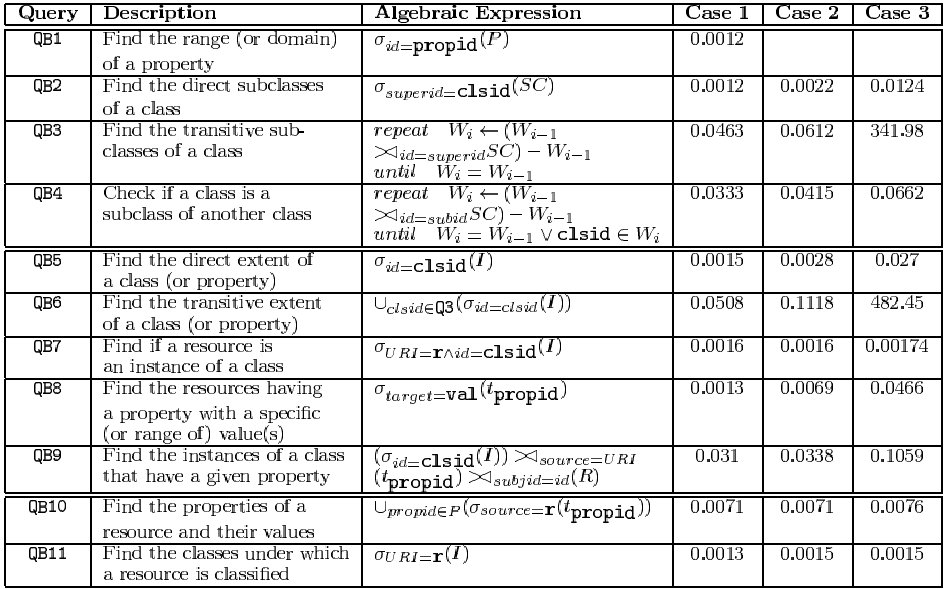

The left part of Table 1 describes the RDF query templates that we used for our experiments, as well as their algebraic expressions using the first variation of our core representation scheme of section 5.1, i.e., employing a unique table for representing all class instances (capital letters abbreviate the table names of Figure 4). This benchmark illustrates the core functionality of RQL: a) pure schema queries on class and property definitions (QB1-QB4); b) queries on resource descriptions using available schema knowledge (QB5-QB9); and c) schema queries for specific resource descriptions (QB10, QB11). In this context, the most frequently asked queries for Portals like ODP are: QB2,QB3,QB5,QB8 and QB9. The right part of Table 1 displays the resulting execution time (in sec) in up to three different result cases per query. Depending on the particular query templates, the different cases refer to different characteristics of the class or property in question, such as number of subclasses, length of path from a class to its leaves, etc. For the sake of accuracy, we carried out all benchmark queries several times: one initially to warm up the database buffers and then nine times to obtain the average execution time of a query.
Queries QB3 and QB6, as expected are expensive, because they involve a transitive closure computation over the subclass hierarchy. The execution time depends on the size of the intermediate join results, as well as on the number of iterations. The advantage of this representation over the generic representation in terms of query evaluation performance is drastic in the presence of complex path expressions. Indeed, the latter representation implies expensive self joins of a large table, namely Triples. In [32] we compared the performance of queries QB8 and QB9 with the two representations. Our specific representation outperformed the generic representation by a factor of almost 105.
We conclude this section with one remark concerning the encoding of
class and property names. Recall that schema or mixed RQL path expressions
need to recursively traverse a given class (or property) hierarchy. We
can transform such traversal queries into interval queries on a linear
domain, that can be answered efficiently by standard DBMS index structures
(e.g., B-trees). This can be done by replacing class (or property) names
by ids using an appropriate encoding, such as the one used in
[5]. We are currently working on the choice
of a such a linear representation of node or edge labels allowing us to
optimize queries that involve different kinds of traversals in a hierarchy.
In this paper, we presented a data model capturing the most salient features of RDF and a declarative query language, RQL, for uniformly querying both RDF schema and resource descriptions. We reported on the design and implementation of a system for storing and querying voluminous RDF description bases, called RSSDB, and gave some performance results using the ORDBMS PostgreSql. There currently exist two distinct implementations of RQL, one by ICS-FORTH (139.91.183.30:9090/RDF/RQL) and the other by Aidministrator (sesame.aidministrator.nl/rql/). As a matter of fact, RQL is a generic tool actually used by several EU projects (i.e., C-Web, MesMuses, Arion and OntoKnowledge13) aiming at building, accessing and personalizing Community Knowledge Portals.
The optimization of RQL query evaluation is a challenging issue
and a topic of our current research. In particular, we study the translation
of RQL into SQL3 queries in the presence of path expressions interleaving
schema with data querying, as well as appropriate encoding schemes for
class and property taxonomies in order to optimize transitive closure queries
over deep hiearchies of names.
This document was translated from LATEX by HEVEA.
